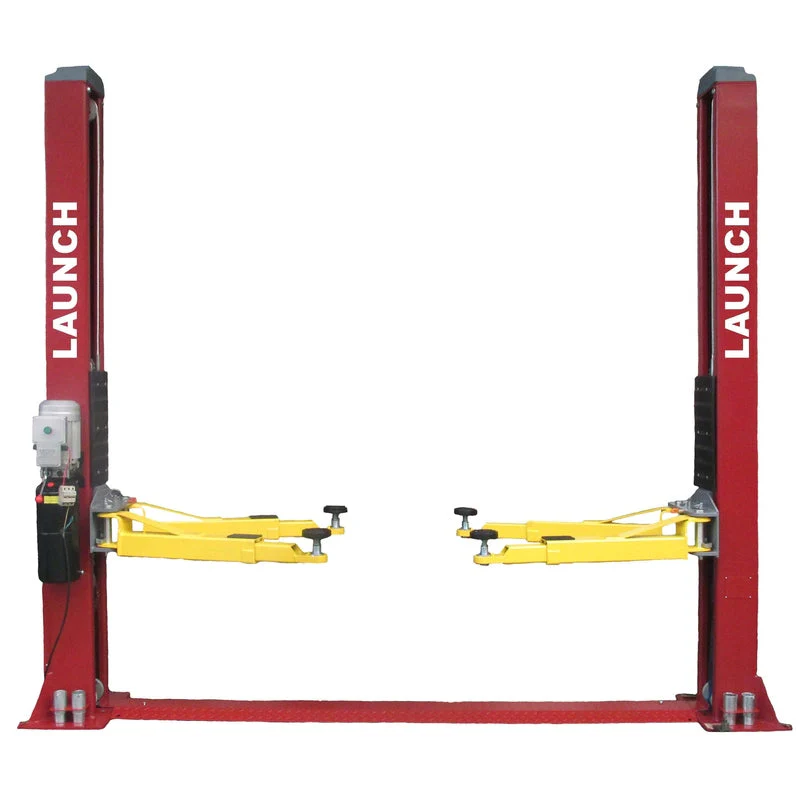

Launch Tech USA TLT240SB 9,000 lb Two Post Floor Plate - Symmetric

The Launch TLT240SB-R is a commercial-grade 9,000 lb. Baseplate Lift engineered for shops that require reliable performance in space-constrained environments. Featuring a symmetric straight-column design, this lift is a "workhorse" for passenger cars, SUVs, and light-duty pickup trucks. Its floor-plate configuration makes it the ideal choice for garages with low ceilings, providing a full 73" of lifting height without the need for an overhead crossbar.

KEY FEATURES

Low-Ceiling Professional Solution: With an overall height of only 113", this lift fits perfectly in shops or home garages where ceiling clearance is limited.

Proven Chain-Drive System: Utilizes dependable chain-driven cylinders for consistent lifting power and long-term durability.

Symmetric Stability: Features equal-reach arms (31.5" to 47.25") and straight columns, ensuring a balanced center of gravity for a wide range of vehicles.

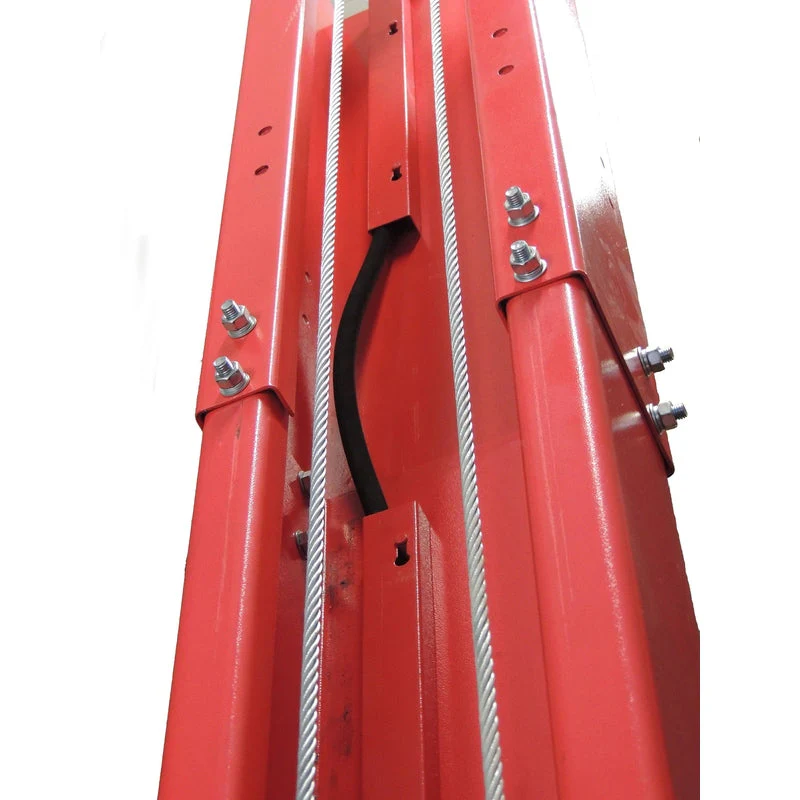

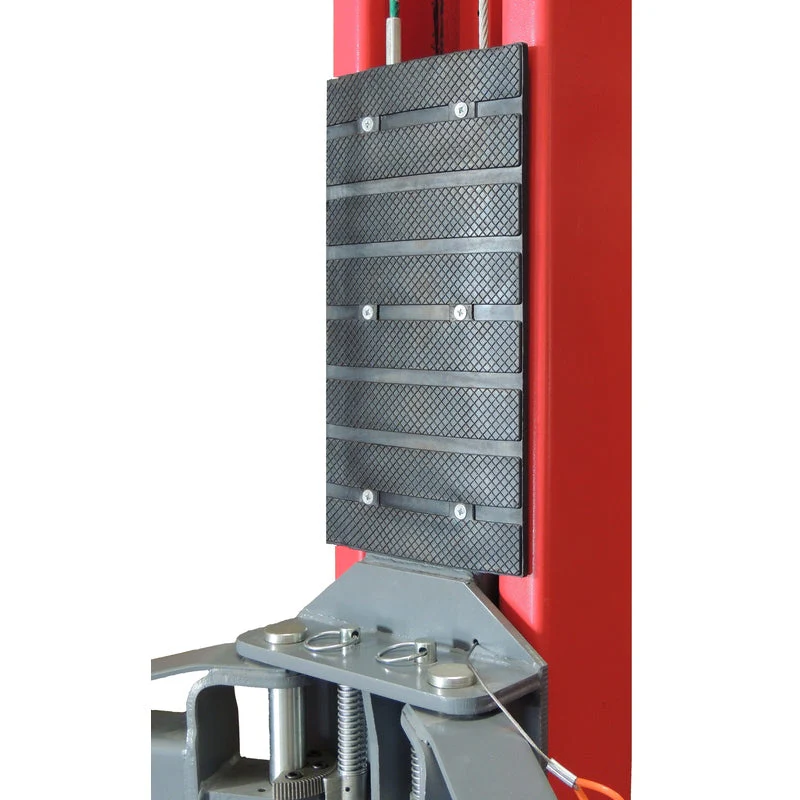

Enhanced Vehicle Protection: Equipped with rubber door guards to prevent impact damage and hose guards to protect hydraulic lines from wear.

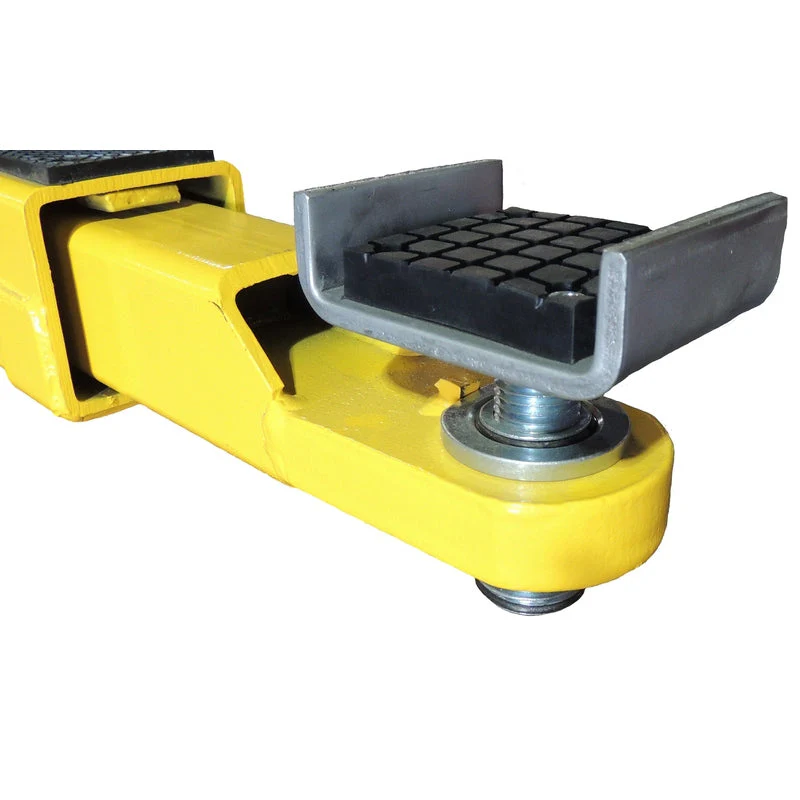

Precision Engagement: Includes double telescoping screw pads and stackable adapters, allowing for fine-tuned contact with various vehicle frame heights.

Dual-Point Safety: A manual dual-point lock release system provides a simple and secure way to manage the lift’s safety mechanisms during operation.

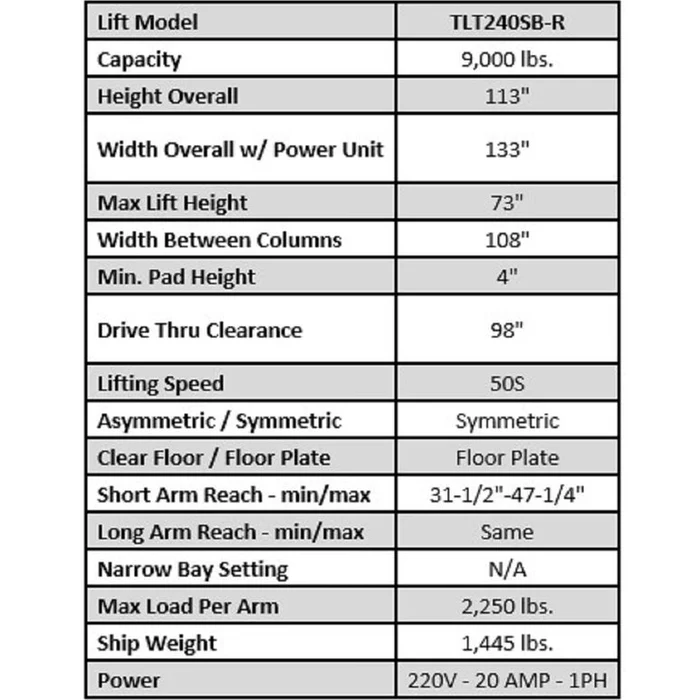

TECHNICAL SPECIFICATIONS

Model: TLT240SB-R

Lifting Capacity: 9,000 lbs.

Overall Height: 113" (9' 5")

Max Lift Height: 73"

Drive-Thru Clearance: 98"

Width Between Columns: 108"

Lifting Speed: 50 Seconds

Power Requirement: 220V / 20 Amp / 1PH

Shipping Weight: 1,445 lbs.

COMPLETE ACCESSORY KIT

The TLT240SB-R comes standard with professional-grade accessories to handle diverse vehicle types:

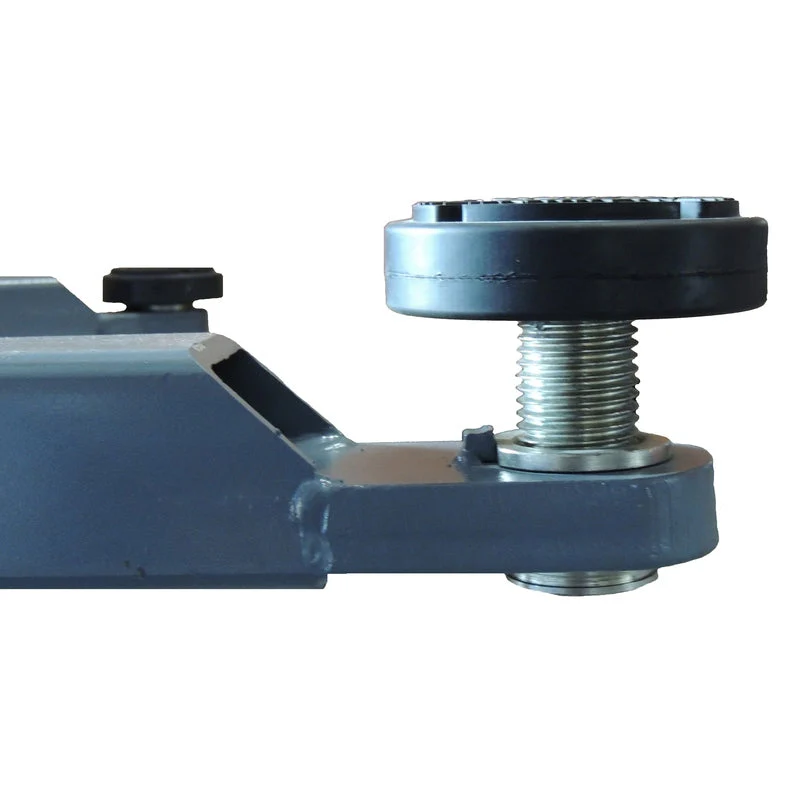

Double Telescoping Screw Pads: For easy height adjustment.

Stackable Foot Pad Adapters: Included for high-clearance SUVs and trucks.

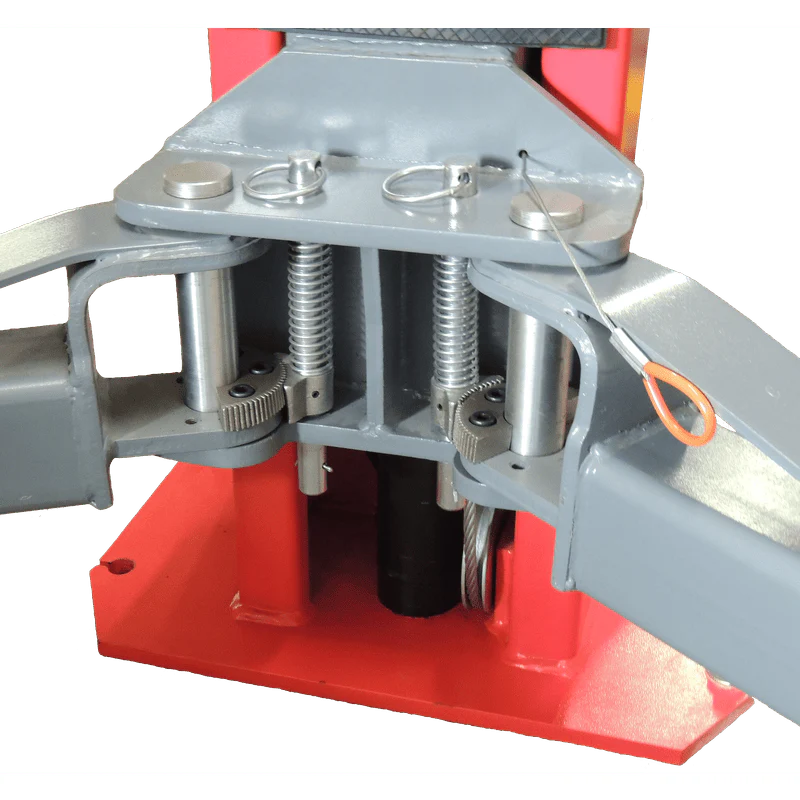

Heavy-Duty Arm Restraints: Automatic engagement to ensure arms stay locked in place.

Why Choose the Launch TLT240SB-R?

Launch is a globally recognized leader in automotive diagnostics and equipment, and the TLT240SB-R carries that legacy of quality. It is a straightforward, easy-to-maintain lifting system that doesn't compromise on safety. For the professional mechanic or the serious enthusiast who needs a space-efficient 9k lift, this model offers the perfect balance of price, performance, and peace of mind
