Katool KT-M150D 15,000 lbs Two Post Lift

The Katool KT-M150D is a titan in the world of automotive lifting. With a massive 15,000 lb. lifting capacity, this heavy-duty two-post lift is specifically engineered for the most demanding environments, including commercial truck centers and fleet repair shops. Built to handle massive pickups, service vans, and medium-duty commercial vehicles, the KT-M150D combines an industrial-strength 4HP motor with a direct-drive system to deliver unmatched power, precision, and long-term reliability.

KEY FEATURES

Massive 15,000 lb. Capacity: Designed to lift the heaviest vehicles in your fleet with absolute confidence and stability.

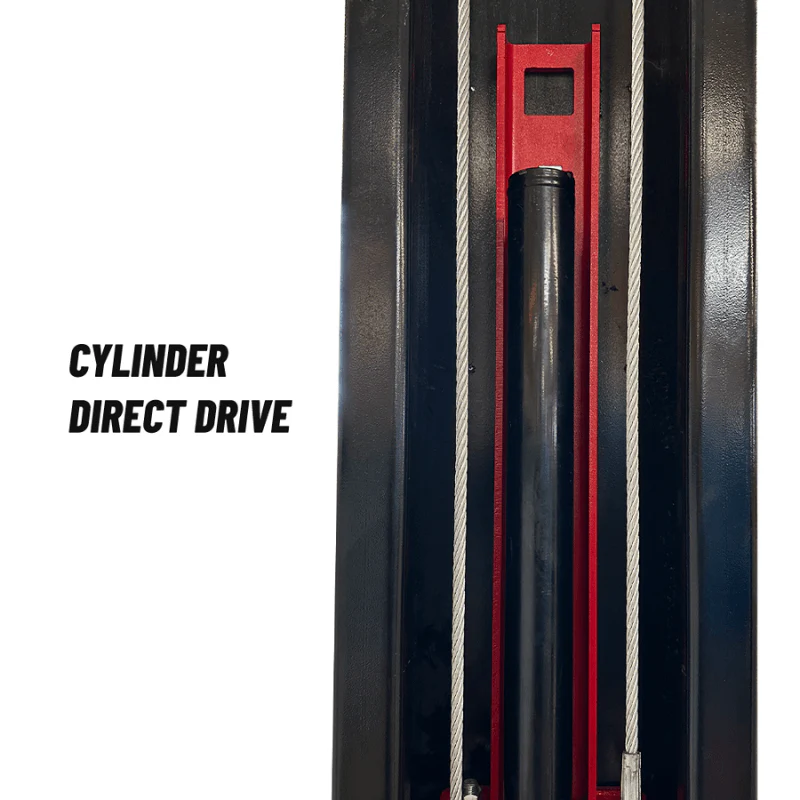

Direct-Drive Hydraulic Power: Eliminates the need for chains or pulleys in the lifting process, resulting in smoother operation, higher efficiency, and significantly lower maintenance costs.

Extra-Tall Clearance: Standing at 176.8" (14.7 ft), this lift provides the height necessary to service tall commercial vans and trucks with high rooflines.

Single-Point Lock Release: Features a centralized release system, allowing the operator to disengage all safety locks safely and quickly from a single column.

4HP High-Output Motor: The upgraded 3KW motor provides the high-torque performance required to lift 7.5 tons quickly and consistently.

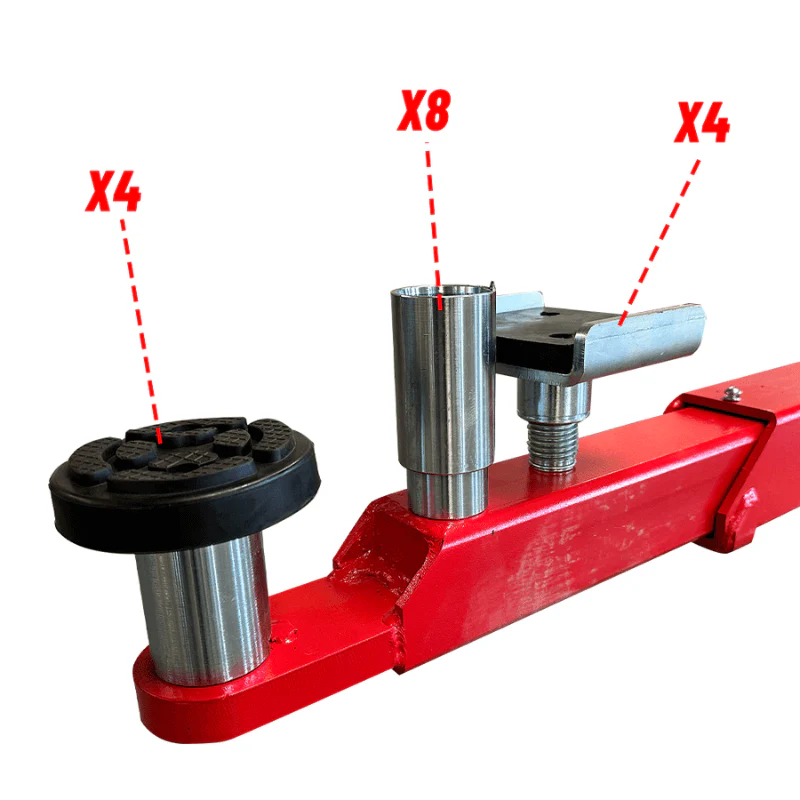

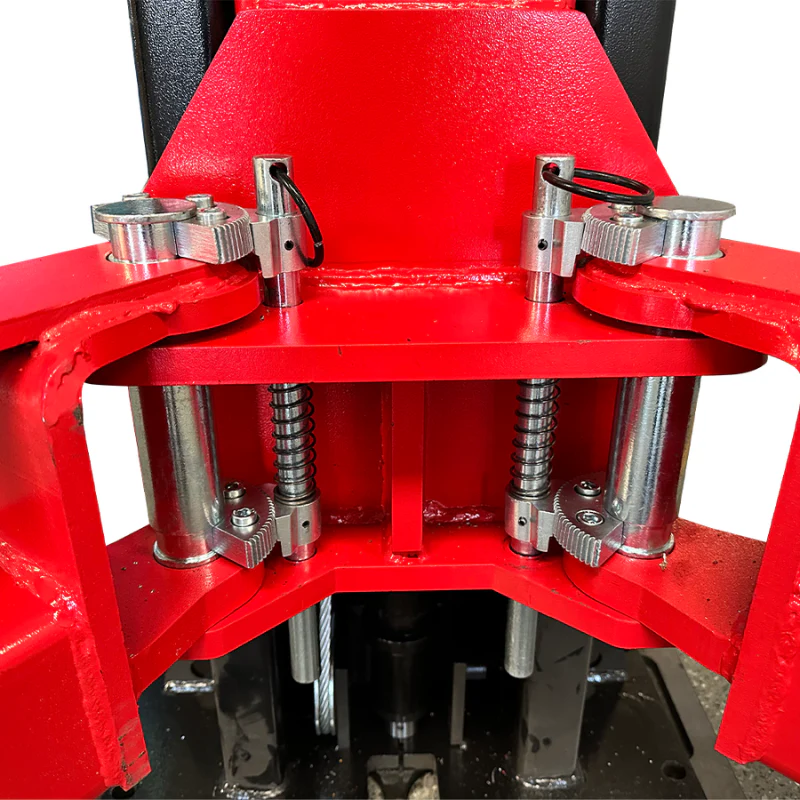

Symmetric Heavy-Duty Arms: Precision-engineered symmetric arms ensure the vehicle’s center of gravity is perfectly balanced for maximum safety during undercarriage inspections.

Wide Drive-Thru Clearance: A spacious 116" drive-thru width accommodates wide-body dually trucks and specialized commercial vehicles effortlessly.

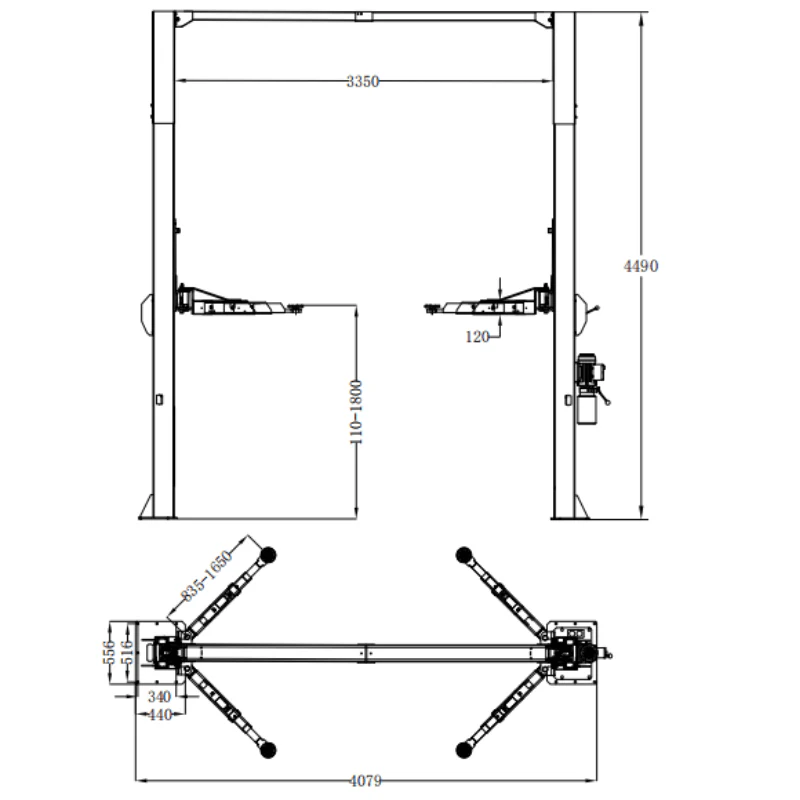

TECHNICAL SPECIFICATIONS

Lifting Capacity: 15,000 lbs (6,800 kg)

Overall Height: 176.8" (14.7 ft)

Max. Lifting Height: 72.83"

Drive-Thru Clearance: 116"

Motor Power: 4HP / 3KW (220V / 60Hz)

Drive System: Dual Hydraulic Direct-Drive

Certification: Built to meet rigorous industrial safety and performance standards.

INSTALLATION & FLOOR REQUIREMENTS

⚠ Concrete Specification: To support this level of weight, the lift MUST be installed on a reinforced concrete surface with a minimum thickness of 5.9" (150mm) and a strength rating of 3,000 PSI.

Ceiling Height: Verify your ceiling clearance (minimum 15 ft suggested) to accommodate the tall columns and the overhead shut-off bar.

Why Choose the Katool KT-M150D?

When "Standard" isn't enough, the KT-M150D steps in. This is a professional-grade tool for those who service the backbone of commerce—delivery trucks, ambulances, and heavy duty work-trucks. It offers maximum under-vehicle access and the peace of mind that comes with a direct-drive system. If your workshop handles the biggest jobs on the road, the Katool 15k is your most trusted partner.
