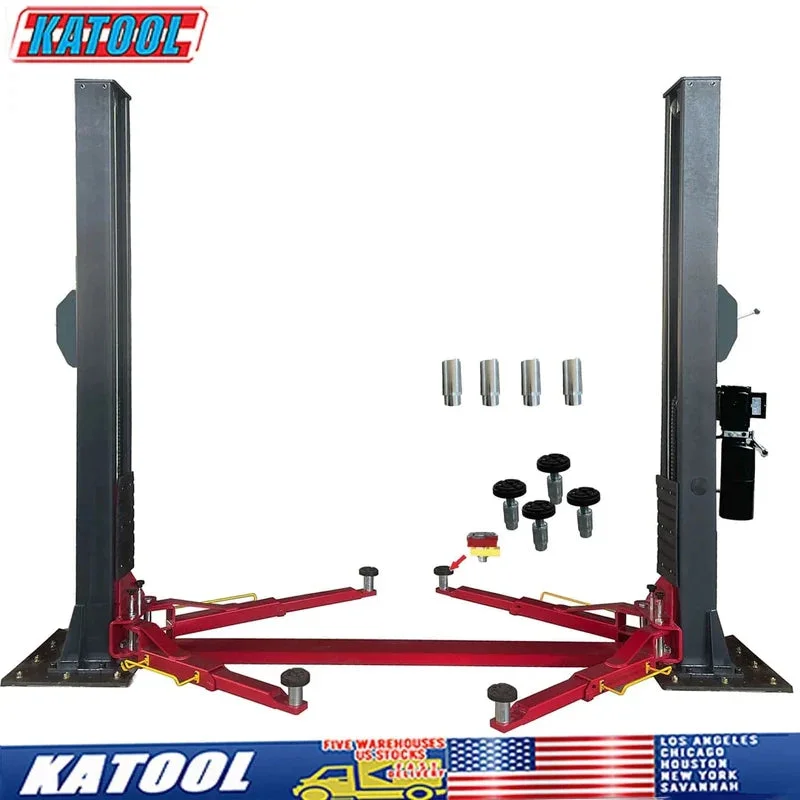

Katool KT-H120D 12,000lbs Two Post Lift Single Lock Release Auto Lift Car Lift
Product Specifications
The Katool KT-H120D is a heavy-duty powerhouse designed for professionals who need to lift up to 12,000 lbs (5,500 kg) but are restricted by ceiling height. Featuring a robust floor-plate (base-plate) design, this lift stands at a compact 110.94", allowing it to fit into workshops where overhead models cannot. Engineered for reliability, it utilizes a dual hydraulic chain-drive system and a reinforced base plate to ensure maximum structural integrity when lifting heavy-duty trucks and commercial vehicles.
KEY FEATURES
Massive 12,000 lb. Capacity: Built to handle everything from passenger cars to heavy-duty pickups and fleet vehicles.
Low-Profile Floor Plate Design: Ideal for shops with low ceilings, providing professional-grade lifting power in a compact vertical footprint.
Single-Side Manual Safety Release: Enhances workflow efficiency by allowing the operator to disengage safety locks from one side only.
Reinforced Structural Integrity: Features a symmetric arm configuration and a heavy-duty base plate for balanced, secure lifting.
Superior Protection: Equipped with rubber door guards to protect vehicle finishes and screw-on pads with +100mm extension adapters for high-clearance frames.
Smooth Chain-Drive System: Dual hydraulic cylinders combined with a precision chain-drive ensure a consistent and balanced rise.

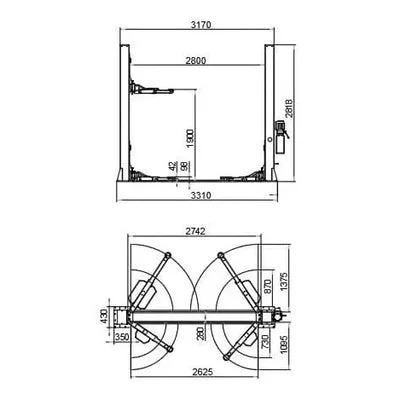

TECHNICAL SPECIFICATIONS
Model: Katool KT-H120D
Lifting Capacity: 12,000 lbs / 5,500 kg
Overall Height: 110.94" (9' 3")
Max. Lifting Height: 74.8"
Overall Width: 140"
Drive-Thru Clearance: 98.43"
Power Requirement: 220V / 60Hz / 1PH
Shipping Weight: Approx. 1,620 lbs (Note: Item weight listed as 120 lbs in specs is for individual components; total unit is heavy-duty).
WARRANTY & SUPPORT
Structural Warranty: 3 Years (36 Months) on all structural parts.
Parts Warranty: 1 Year (12 Months) on cylinders, power units, and motors.
Extended Option: 2-year extended warranty available for added peace of mind.
Reliability: All Katool products are industry-tested to pass rigorous durability and performance standards.
⚠️ INSTALLATION REQUIREMENT
To ensure safety and prevent serious injury, this lift MUST be installed on a level concrete surface with:
Minimum Thickness: 5.9" (150 mm).
Strength Rating: 3,000 PSI.
It is the customer's responsibility to verify concrete specifications prior to installation.
Why Choose the Katool KT-H120D?
The KT-H120D is the perfect bridge between a standard 2-post lift and a massive commercial hoist. It provides the extra 2,000 lbs of capacity over standard 10k models, ensuring you never have to turn away a heavy truck customer. For shops with limited ceiling height but a high volume of heavy-duty work, the KT-H120D is the most reliable investment on the market.
