Atlas PV12PX 12,000 lb Overhead 2-Post Lift
Product Specifications
The Atlas® PV12PX is the definitive choice for professional service centers that demand a "bulletproof" lifting solution. Part of the legendary Atlas PV Series, this 12,000 lb. capacity lift is engineered for extreme durability and heavy-duty performance. Its unique Extra-Tall and Extra-Wide design provides a spacious 123" between columns, making it the perfect hoist for long-wheelbase trucks, service vans, and commercial vehicles with oversized mirrors or running boards.
KEY FEATURES

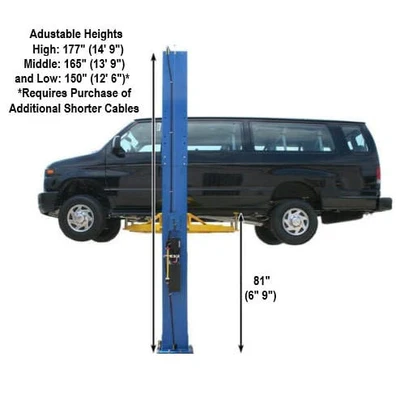

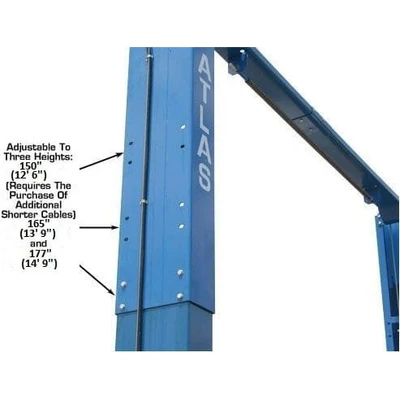

Triple-Height Adjustability: One of the most versatile lifts on the market, offering three height configurations: 150" (12' 6"), 165" (13' 9"), or 177" (14' 9") to perfectly match your shop’s ceiling.

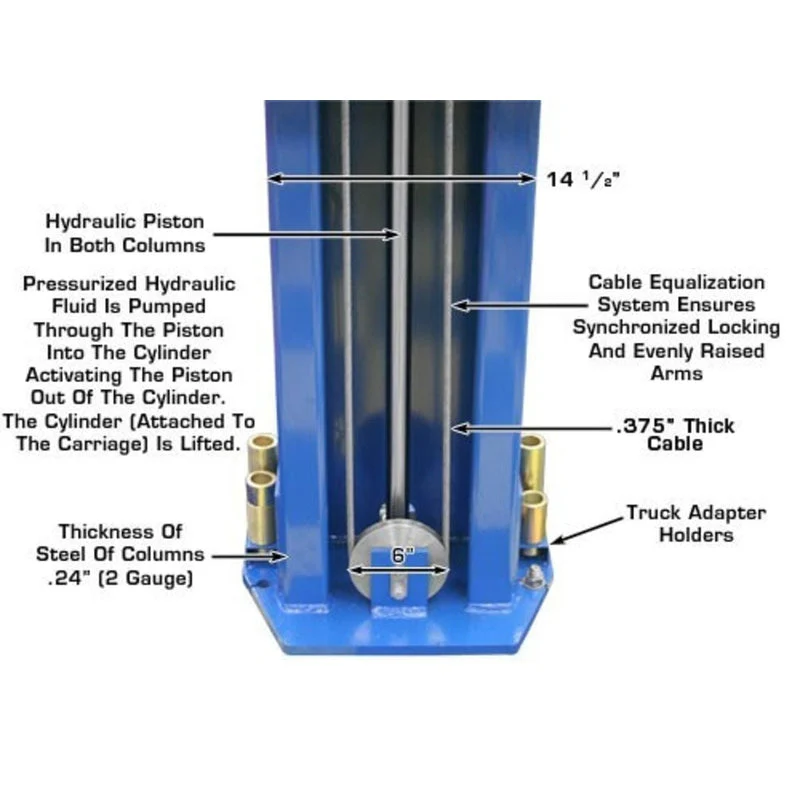

Direct-Drive Power: Equipped with dual direct-drive hydraulic cylinders for smooth, consistent lifting with significantly reduced maintenance.
Extra-Wide Drive-Thru: Boasts a 109.5" drive-through clearance, allowing even the widest dually trucks to pass through with ease.

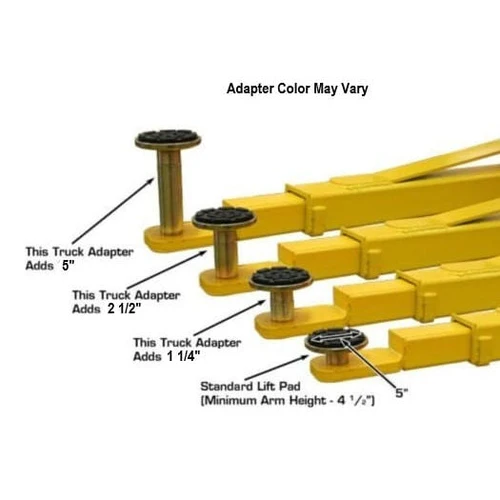

Low-Profile Versatility: Despite its heavy-duty rating, the 4.5" minimum arm height ensures you can safely lift standard passenger cars alongside heavy trucks.

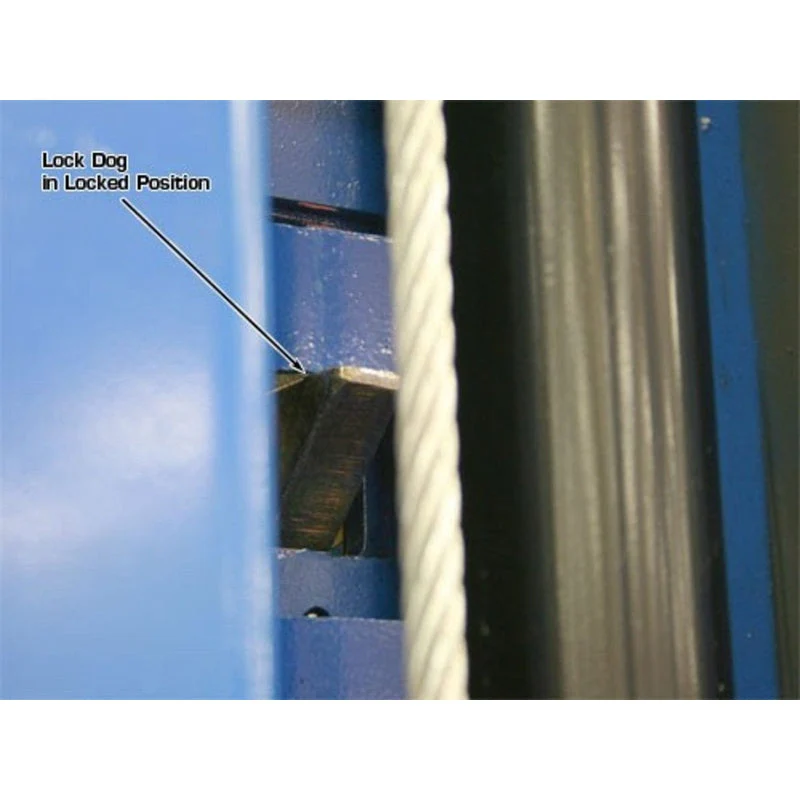

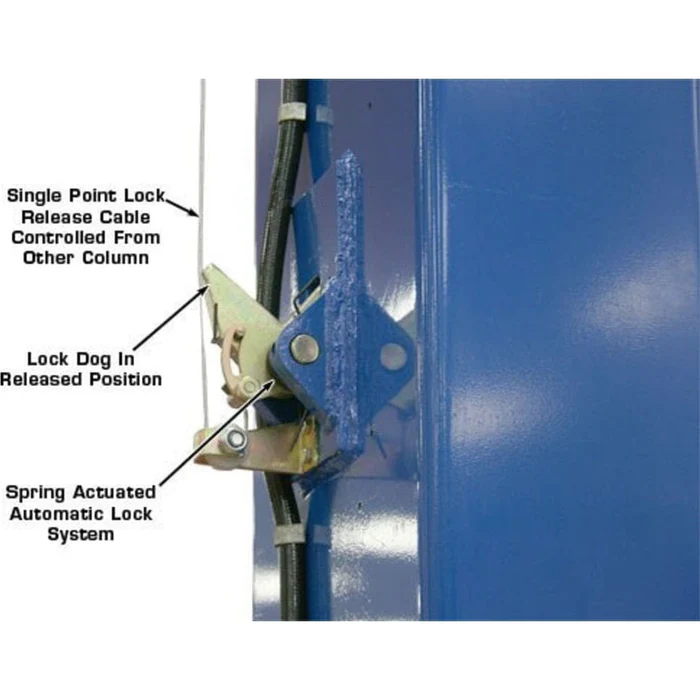

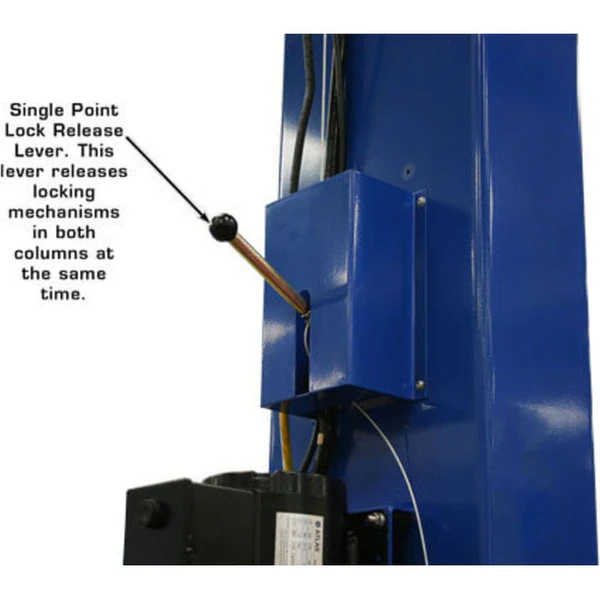

Single-Point Lock Release: Streamlines the lowering process, allowing technicians to focus on the vehicle rather than multiple release cables.

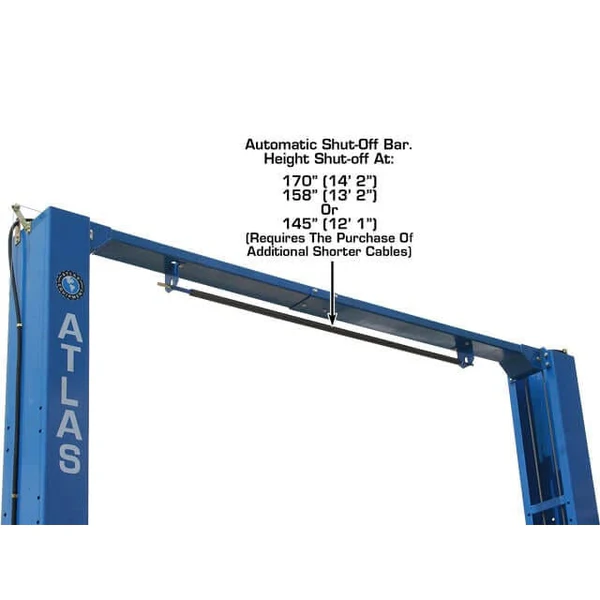

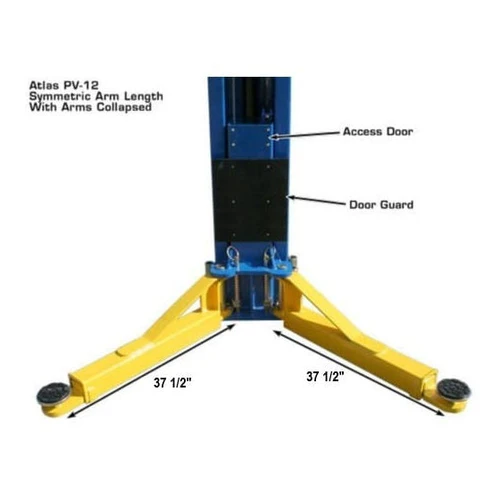

Comprehensive Protection: Features a padded overhead safety shut-off bar, automatic arm restraints, and rubber door guards on the carriages.

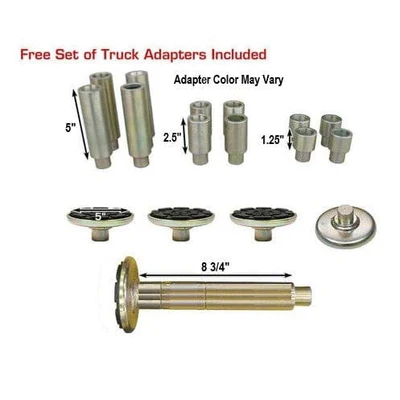

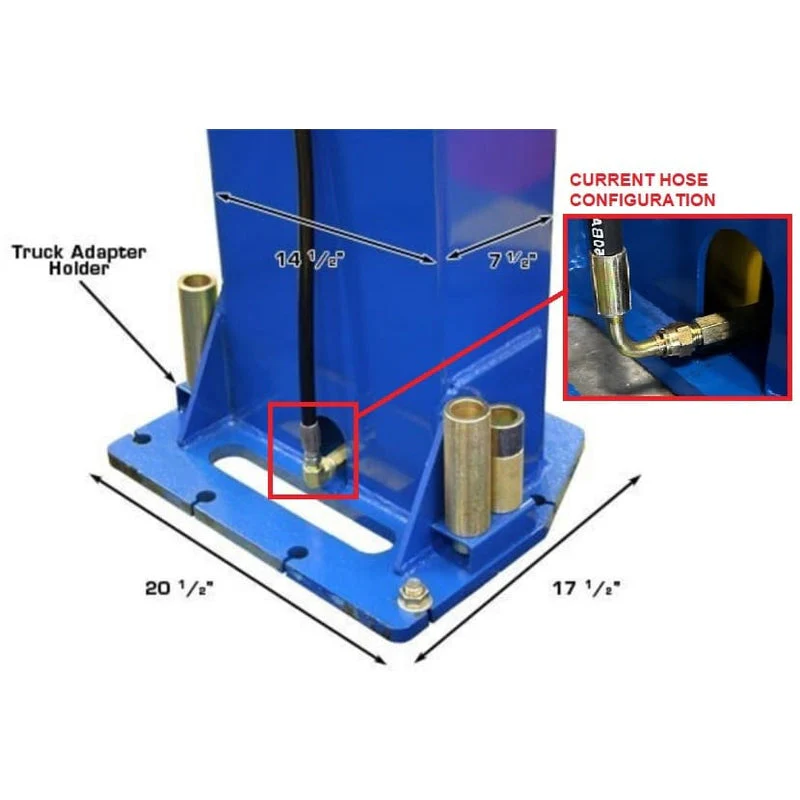

Free Adapter Kit: Includes a FREE 12-piece peg-style truck adapter set, giving you everything needed to start servicing commercial fleets immediately.
TECHNICAL SPECIFICATIONS
Model: Atlas® PV12PX
Lifting Capacity: 12,000 lbs.
Overall Height: Adjustable up to 177" (14' 9")

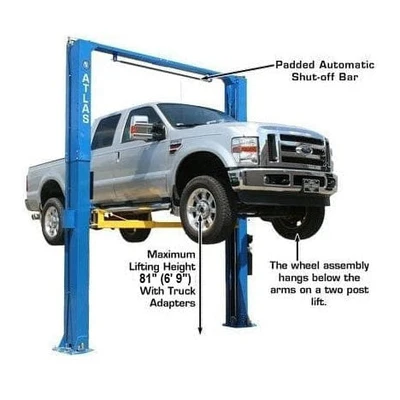

Max Lift Height (with adapters): 81"

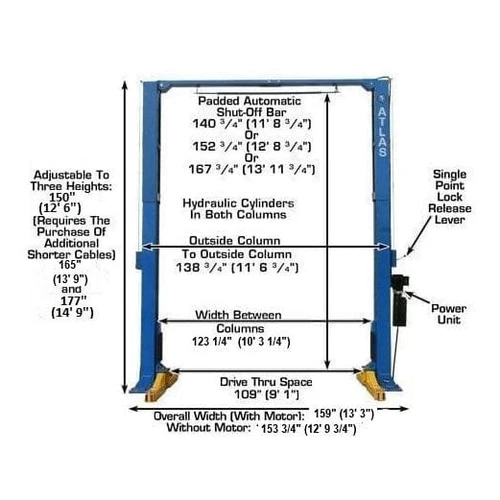

Inside Column Width: 123 1/2"
Steel Thickness: 6mm (Heavy-Duty Industrial Grade)
Power Requirement: 220V Single Phase (30A breaker recommended)

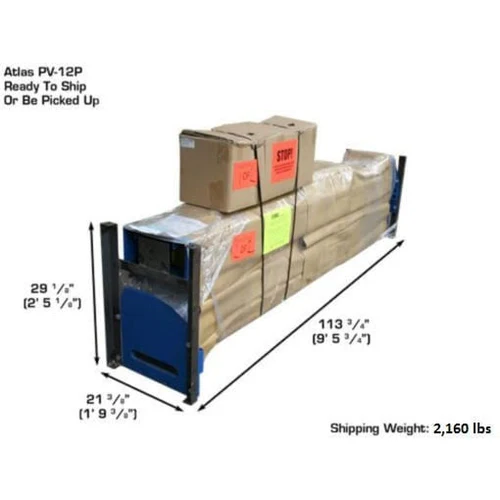

Shipping Weight: 2,160 lbs.
Warranty: 5-Year Structural | 2-Year Hydraulic (Parts Only)
INSTALLATION & SITE REQUIREMENTS

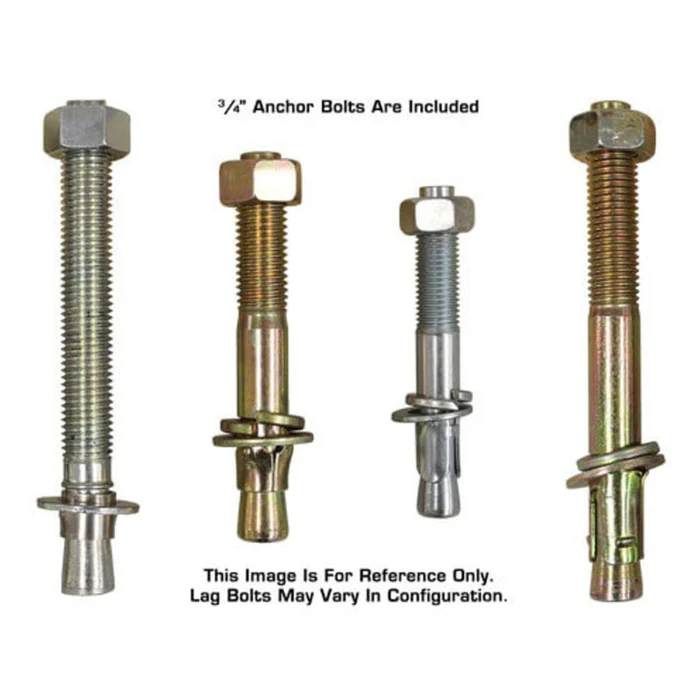

Concrete: Minimum 6" thick slab rated at 3,000 PSI.
Ceiling Height: Ensure your shop has the required clearance for your chosen height configuration (up to 14' 9").
Low Ceiling Note: The 150" height option requires the purchase of optional short cables.
Why Choose the Atlas® PV12PX?
The PV12PX is widely regarded as "tough as nails" by mechanics worldwide. If your business focuses on heavy-duty vehicle service—such as ambulances, box trucks, or modified off-road pickups—this lift provides the height and width clearance that standard 2-post lifts lack. It’s a commercial-grade investment built to handle the heaviest workloads for decades.
