Atlas Platinum PVL15 15,000 lb Heavy Duty 2-Post Lift
Product Specifications
The Atlas® Platinum PVL15 is the crown jewel of heavy-duty lifting. As an ALI Certified powerhouse, this 15,000 lb. capacity lift has been rigorously tested to meet the highest safety and performance standards in North America. Engineered specifically for high-volume commercial shops and fleet centers, the PVL15 handles long-wheelbase trucks and massive service vehicles with surgical precision. Featuring the premium ALLY Hydraulic AL2300 Power Unit, this lift is designed to stay cool under pressure, ensuring consistent torque and professional-grade longevity.
KEY FEATURES
ALI Certified Excellence: Verified by the Automotive Lift Institute (ALI) to ensure maximum operator safety and structural integrity.
Massive 15,000 lb. Capacity: Built for the "big jobs"—from ambulances and school buses to heavy-duty work trucks.

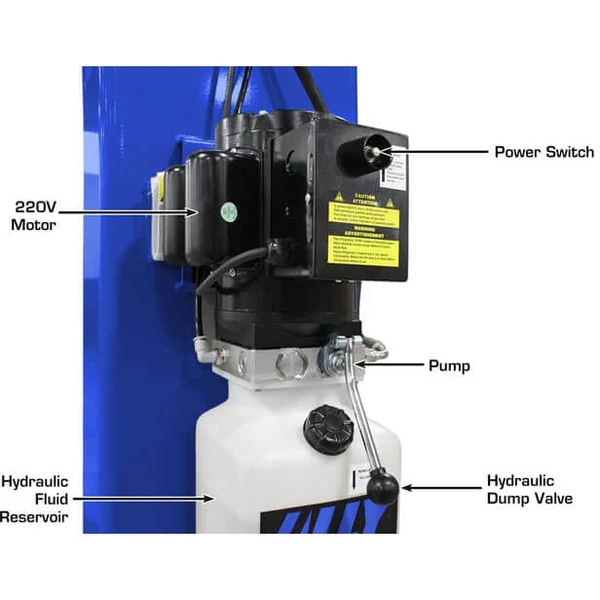

Premium ALLY Hydraulic Power: The AL2300 unit features silver-infused motor windings and heavy-duty armatures to minimize heat and maximize motor life.

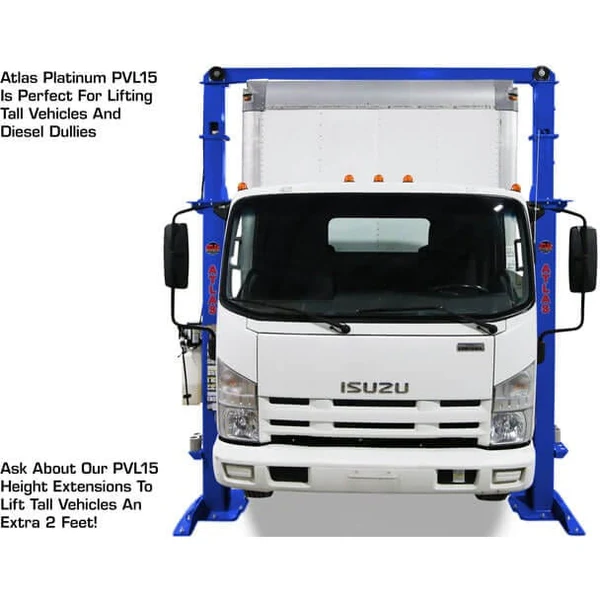

Extra-Tall & Expandable: Standing at 174-1/2", it can be further upgraded with an optional Height Extension Kit for an additional 2 feet of clearance.

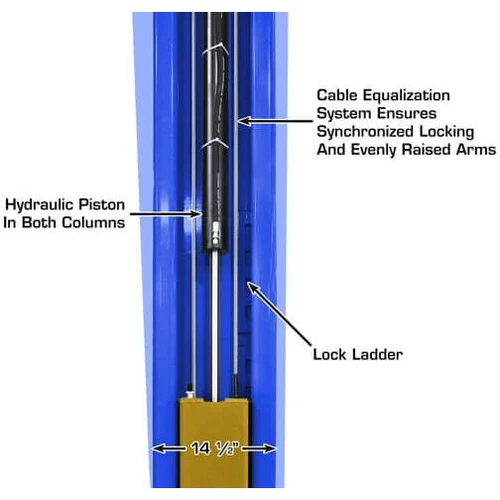

Direct-Drive Performance: Dual direct-drive hydraulic cylinders provide a smoother, faster, and more reliable lift than traditional chain systems.

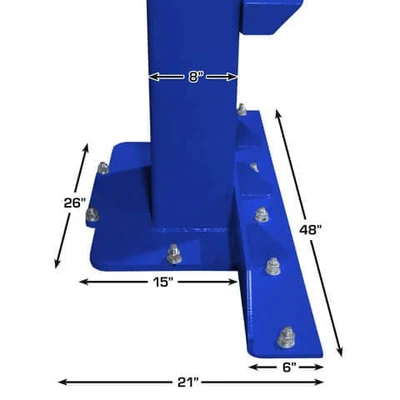

Industrial Build Quality: Constructed with 8mm thick steel columns and massive 21" x 48" base plates for a rock-solid foundation.

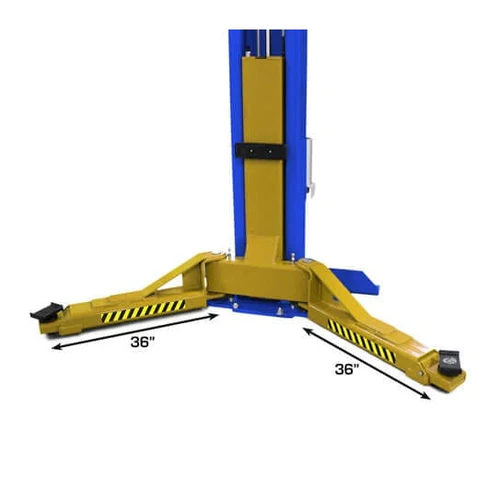

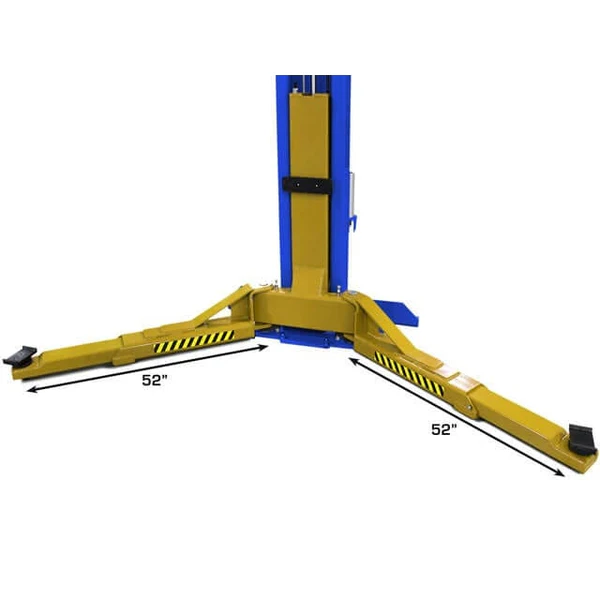

Symmetric Heavy-Duty Arms: Balanced configuration designed to center the heaviest loads, supported by a professional-grade arm lock restraint system.
TECHNICAL SPECIFICATIONS
Model: Atlas® Platinum PVL15
Lifting Capacity: 15,000 lbs.

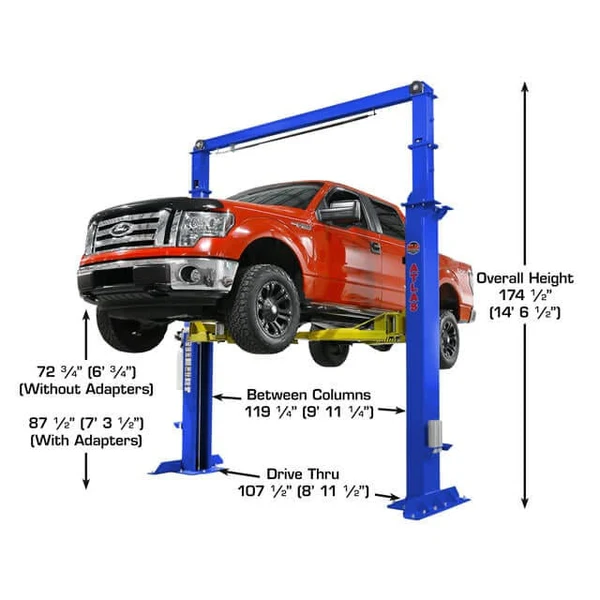

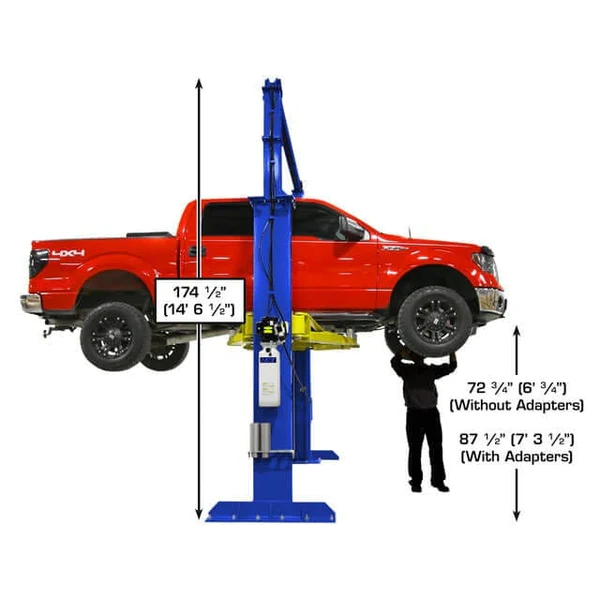

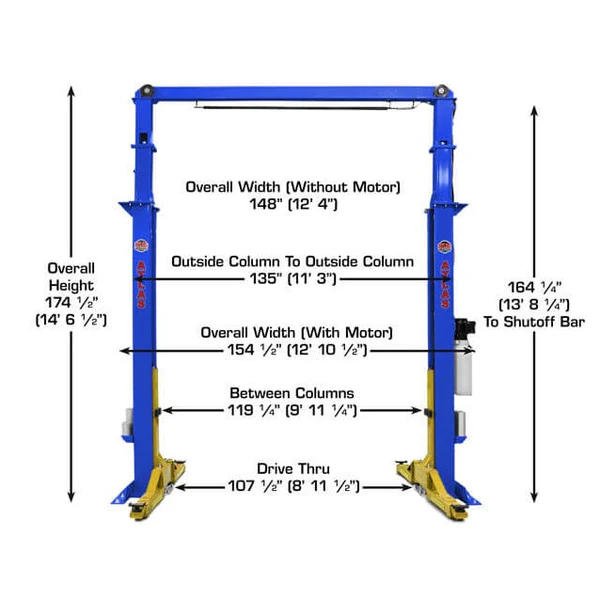

Overall Height: 174 1/2" (14' 6 1/2")
Inside Column Width: 119 1/4"
Drive-Through Clearance: 107 1/2"
Steel Thickness: 8 mm (Columns)
Motor: ALLY Hydraulic AL2300 (220V Single-Phase)

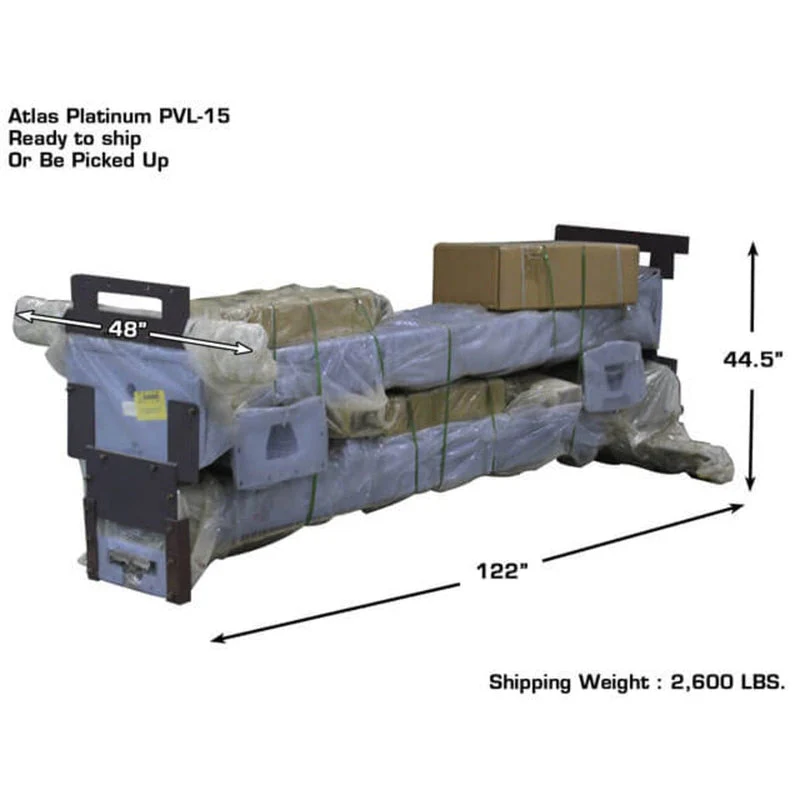

Shipping Weight: 2,600 lbs.
Warranty: 5-Year Structural | 2-Year Hydraulic | 2-Year Power Unit
COMPLETE ACCESSORY PACKAGE
The PVL15 comes ready for work with a professional accessory kit:

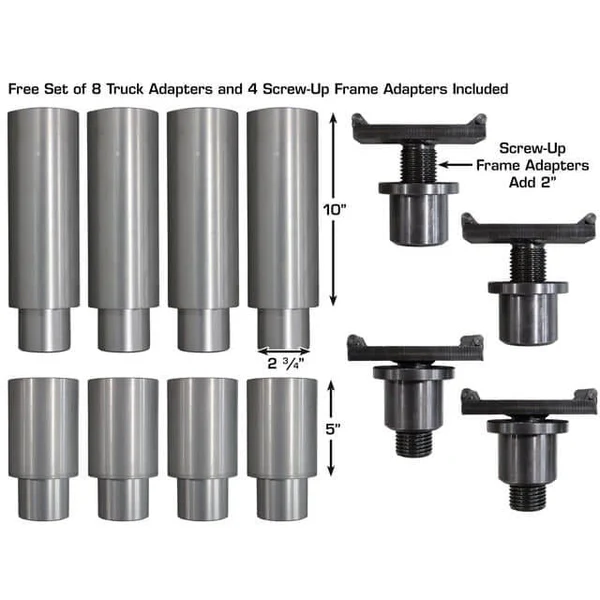

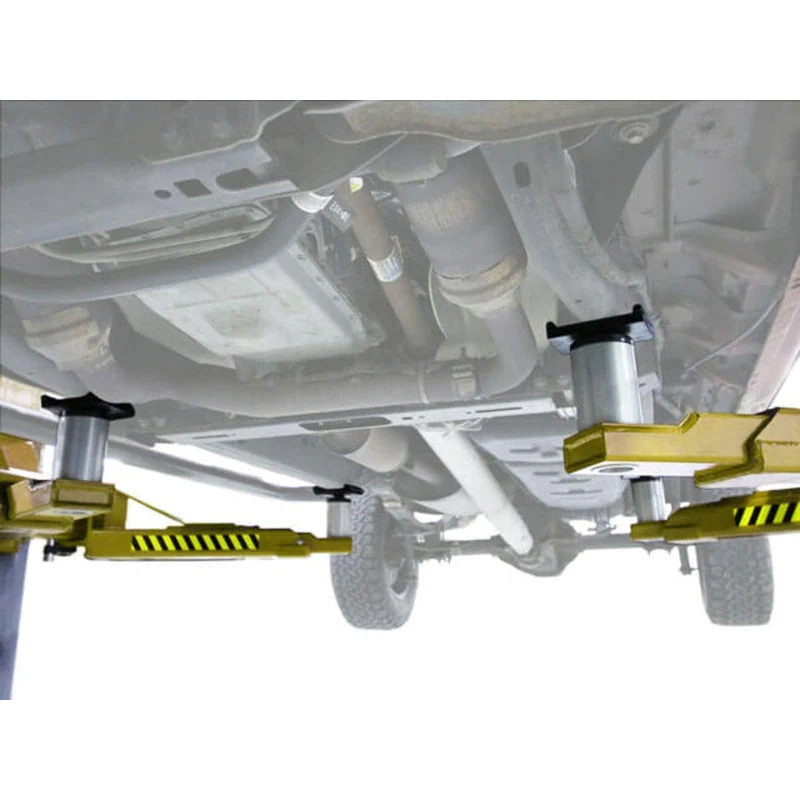

4x Screw-Up Frame Adapters.

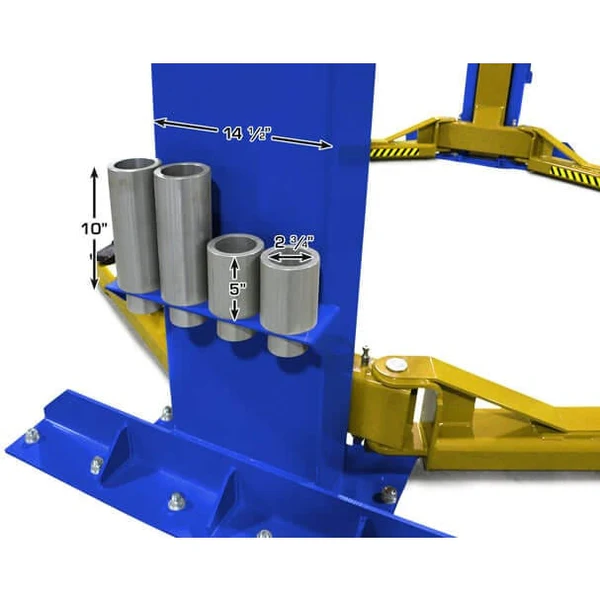

8-Piece Truck Adapter Set (Includes four 5" and four 10" adapters).
3/8" Equalization Cables: Heavy-duty cables for perfect carriage synchronization.
Mounting Hardware: Full set of heavy-duty anchors included.
INSTALLATION & SITE REQUIREMENTS
Concrete: Minimum 6" thick slab rated at 3,000 PSI is required to support the 15k load.
Height Clearance: With a standard height of over 14 feet, verify your ceiling clearance and overhead obstructions before setup.
Electrical: 220V Single-Phase (30A breaker recommended).
Why Choose the Atlas® Platinum PVL15?
When your business depends on lifting 7.5-ton vehicles daily, you cannot settle for anything less than ALI Certified equipment. The Platinum PVL15 isn't just a lift; it's an insurance policy for your shop’s productivity. With its upgraded electrical components and direct-drive reliability, it is designed to be the most dependable tool in your facility, providing a level of safety and power that uncertified lifts simply cannot match.
