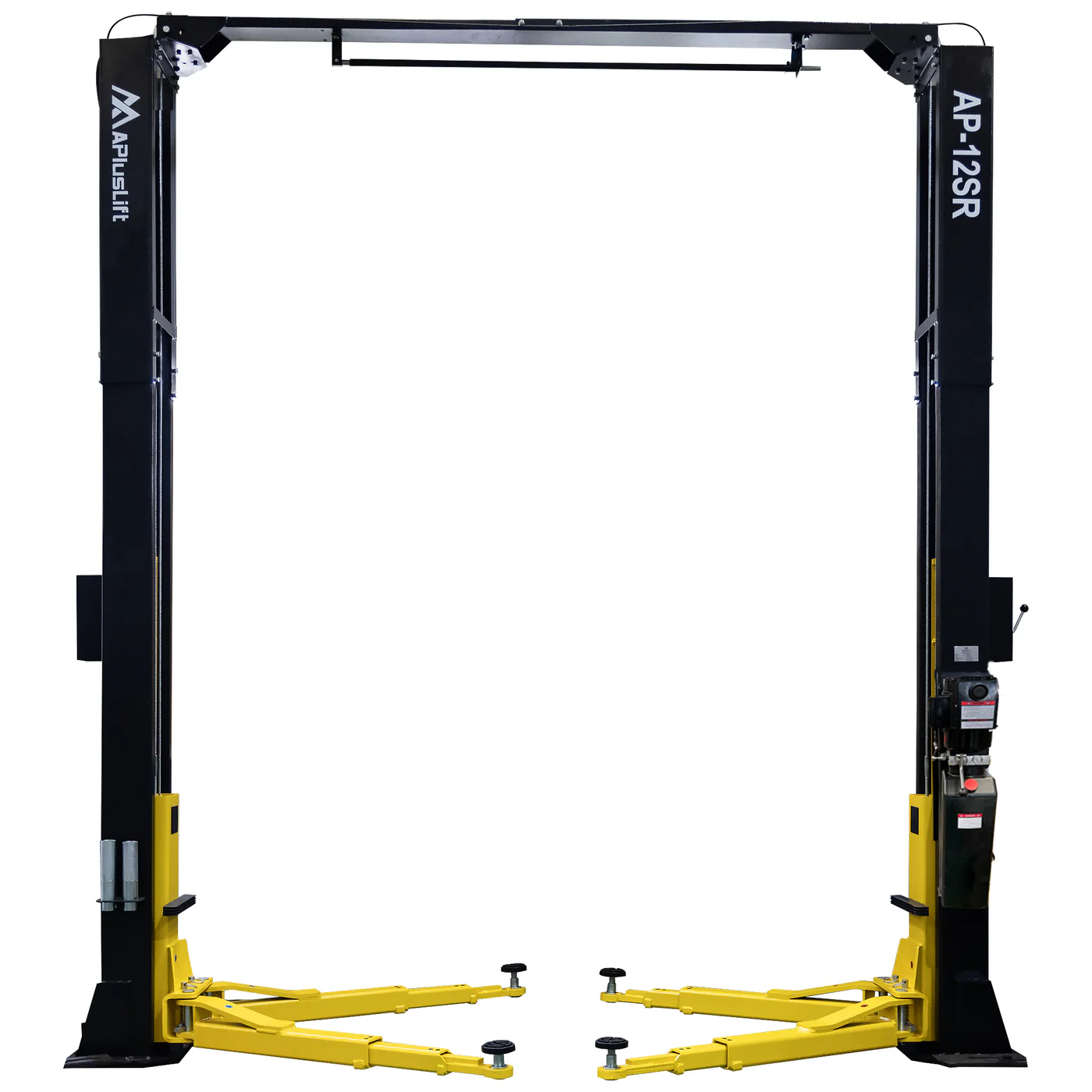

APlusLift 12,000LB 2-Post Overhead Single Release Direct Drive Car Lift with A 3-Year Warranty - AP-12SR

The APlusLift AP-12SR is a high-performance, 12,000 lb. Overhead Direct-Drive lift, purpose-built for those who demand "Serious Power." Standing tall at 165" (13.75 ft), this lift is engineered to handle everything from standard sedans to full-size heavy-duty trucks and commercial vans. With its Direct-Drive system and single-point lock release, the AP-12SR offers a smoother, faster, and more efficient workflow for professional mechanics and fleet service centers.

KEY FEATURES

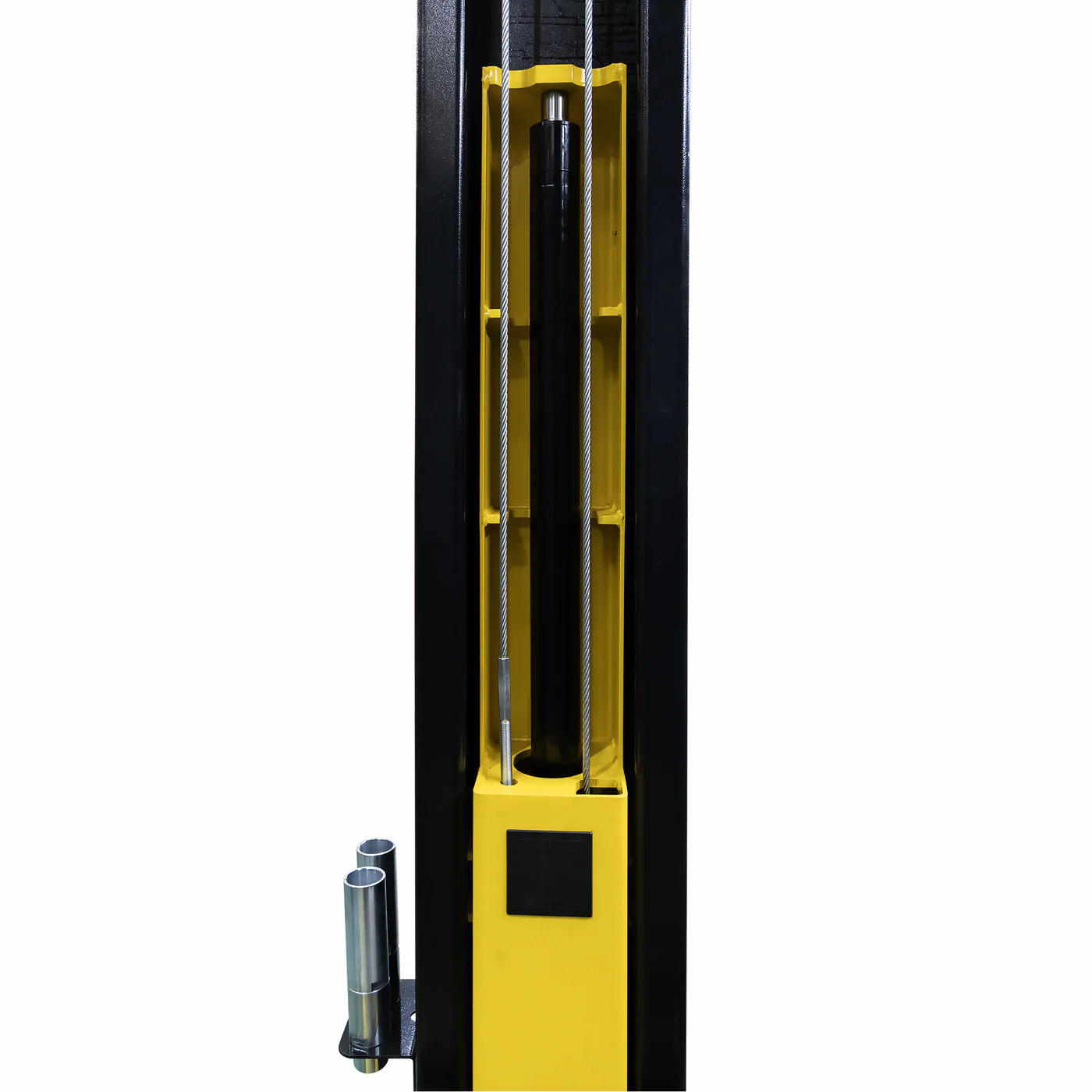

Direct-Drive Technology: Dual hydraulic cylinders operate without chains, reducing maintenance and providing a more consistent, powerful lift.

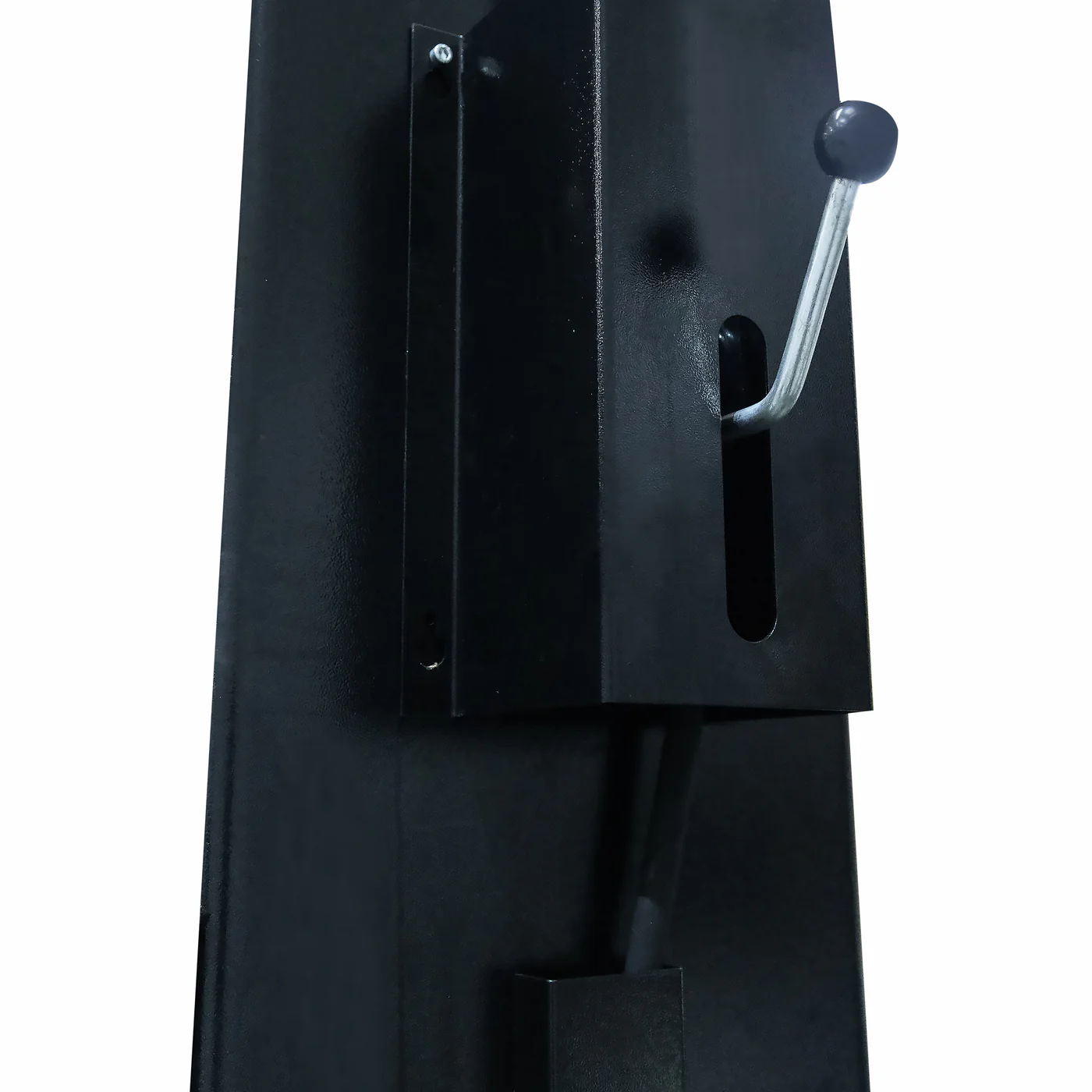

Single-Point Safety Release: Boosts shop efficiency by allowing the operator to disengage all safety locks from a single column with one lever.

Extreme Reach 3-Stage Arms: Both front and rear arms are symmetrical 3-stage designs, extending from 37.5" to a massive 72.18", ensuring you can reach the lifting points on the longest trucks.

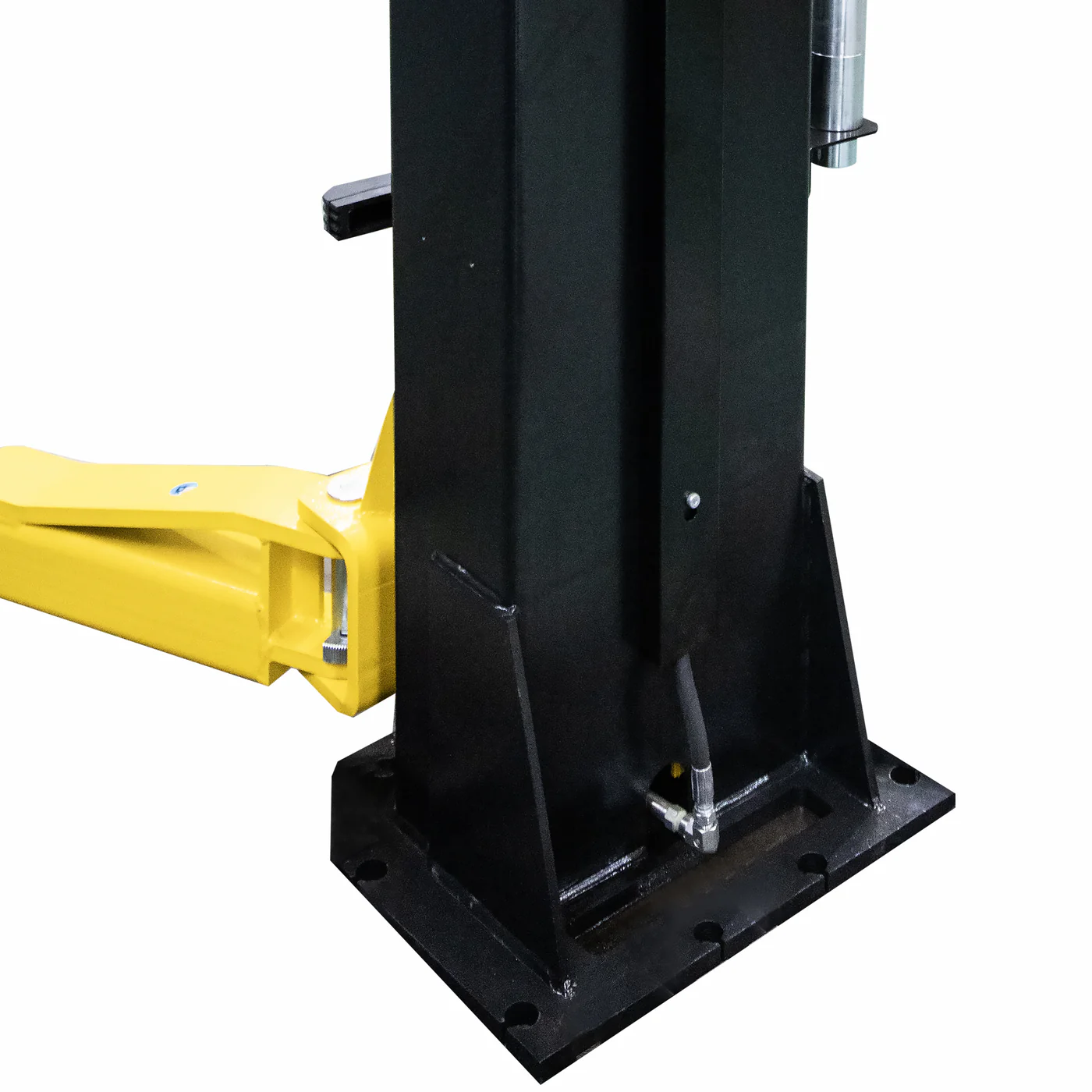

Superior Steel Grade: Built with Q355 Steel (ASTM A572) carriages and a 13/16" thick base plate, offering structural rigidity that far exceeds standard economy lifts.

Safety First: CE Certified and load-tested to 115% dynamic and 150% static capacity. Includes an overhead shut-off bar and up-limit switches for cylinder protection.

Advanced Motor System: Features a 3HP inverter motor for reliable, high-torque performance under heavy loads.

Industrial Durability: Robot-welded structure with a premium powder-coated finish for maximum corrosion resistance in tough shop environments.

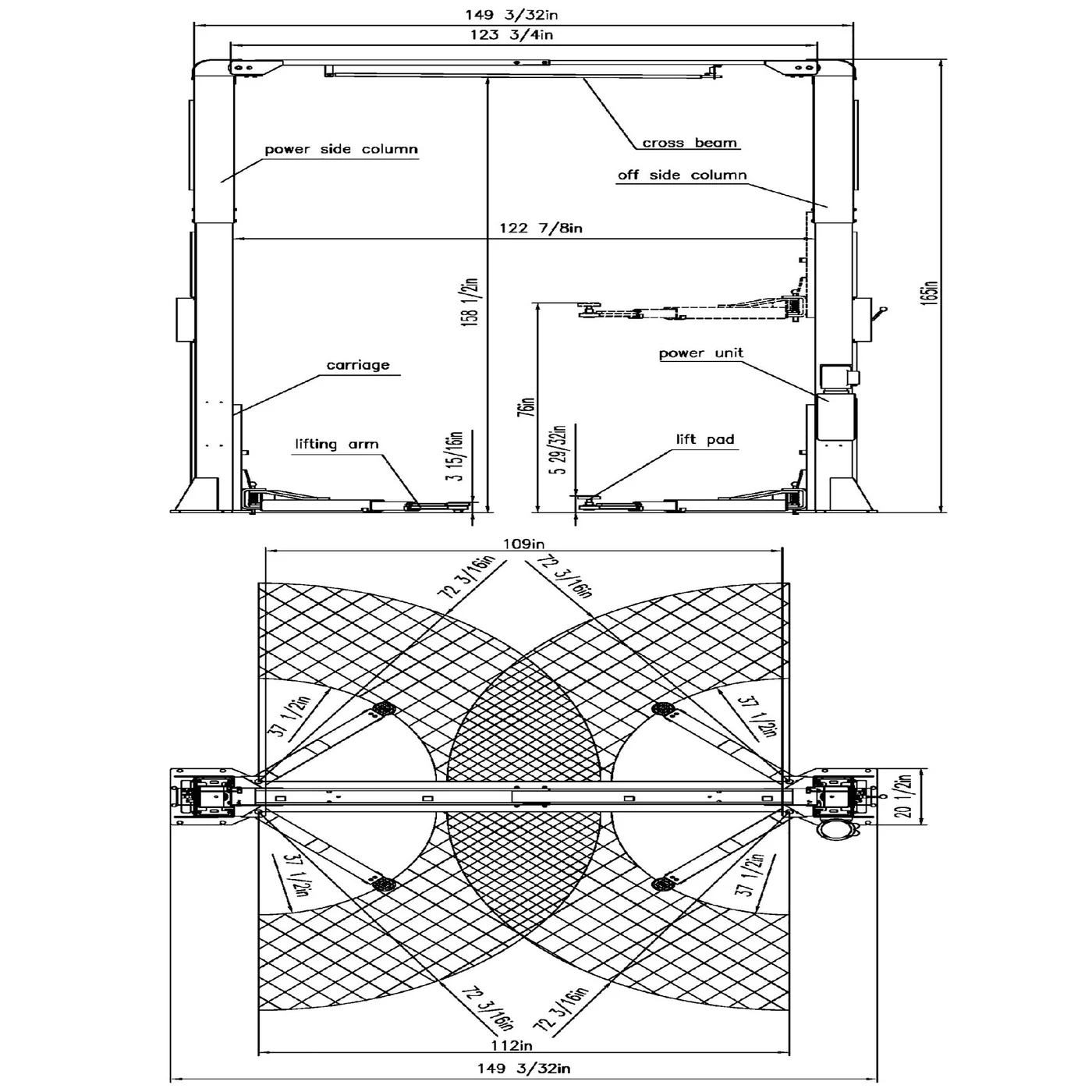

TECHNICAL SPECIFICATIONS

Model: AP-12SR

Lifting Capacity: 12,000 lbs

Overall Height: 165" (Ensure high-clearance ceiling)

Max Lift Height (with adapters): 79"

Drive-Through Width: 109"

Column to Column Width: 123"

Arm Reach: 37.5" – 72 3/16" (All 4 arms)

Power Requirement: 220V Single Phase / 3HP (20A breaker recommended)

Shipping Weight: 2,500 lbs

COMPLETE ACCESSORY KIT

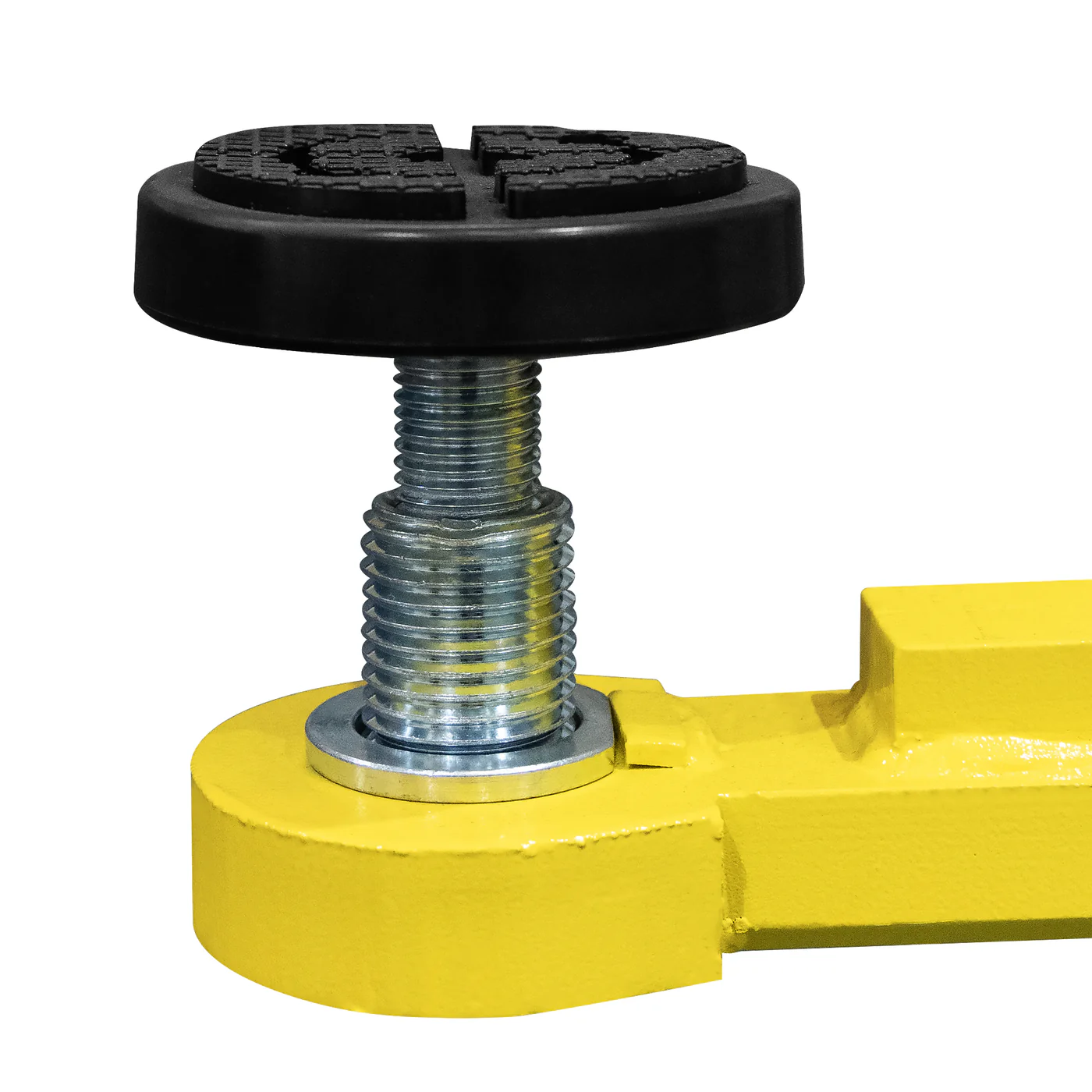

4x Adjustable Screw Pads

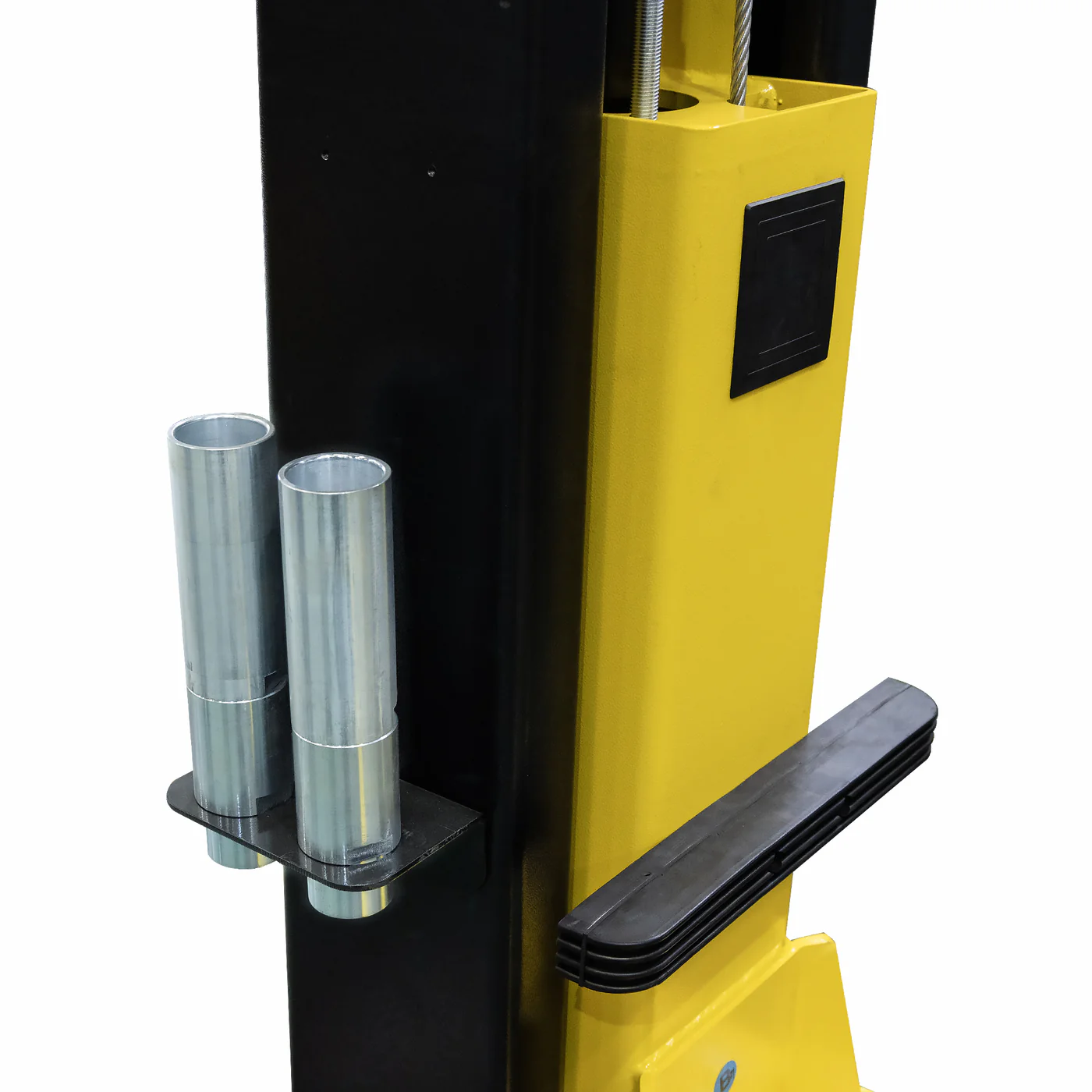

4x 3" Truck Adapters

4x 6" Truck Adapters

10x Heavy-Duty Anchor Bolts & Shims

INSTALLATION & FLOOR REQUIREMENTS

Concrete Specs: Requires 6" thick concrete at 3,500 PSI (steel or fiberglass reinforced) for full 12k capacity.

Ceiling Clearance: This is a tall unit (13' 9"). Verify your ceiling height and overhead obstructions (lights, heaters) before installation.

Why Choose the APlusLift AP-12SR?

The AP-12SR is the ultimate "Fleet Workhorse." While 10k lifts might struggle with heavy work trucks, the 12,000 lb. rating and Direct-Drive system of the AP-12SR provide the extra muscle and reliability needed for high-volume commercial use. If your shop services heavy pickups, ambulances, or long-wheelbase delivery vans, this is the professional-grade tool that will keep your bays moving safely.
