APlusLift 10,000LB 2-Post Overhead Heavy Duty Car Lift with 3 Year Warranty – HW-10KOH-A

The APlusLift HW-10KOH-A is one of the most reliable and affordable 10,000 lb. Overhead Clear-Floor lifts on the market. Engineered with a unique Double "S" Column design, this hoist provides superior structural reinforcement compared to standard columns. Whether you are running a commercial shop or a high-end home garage, this lift offers a "Combo" arm assembly—giving you the flexibility to load vehicles in both Symmetrical and Asymmetrical configurations for perfect balance every time.

KEY FEATURES

Industry-Leading 3-Year Warranty: We stand behind our quality with a comprehensive 36-month warranty on all parts—a $499 value included at no extra cost.

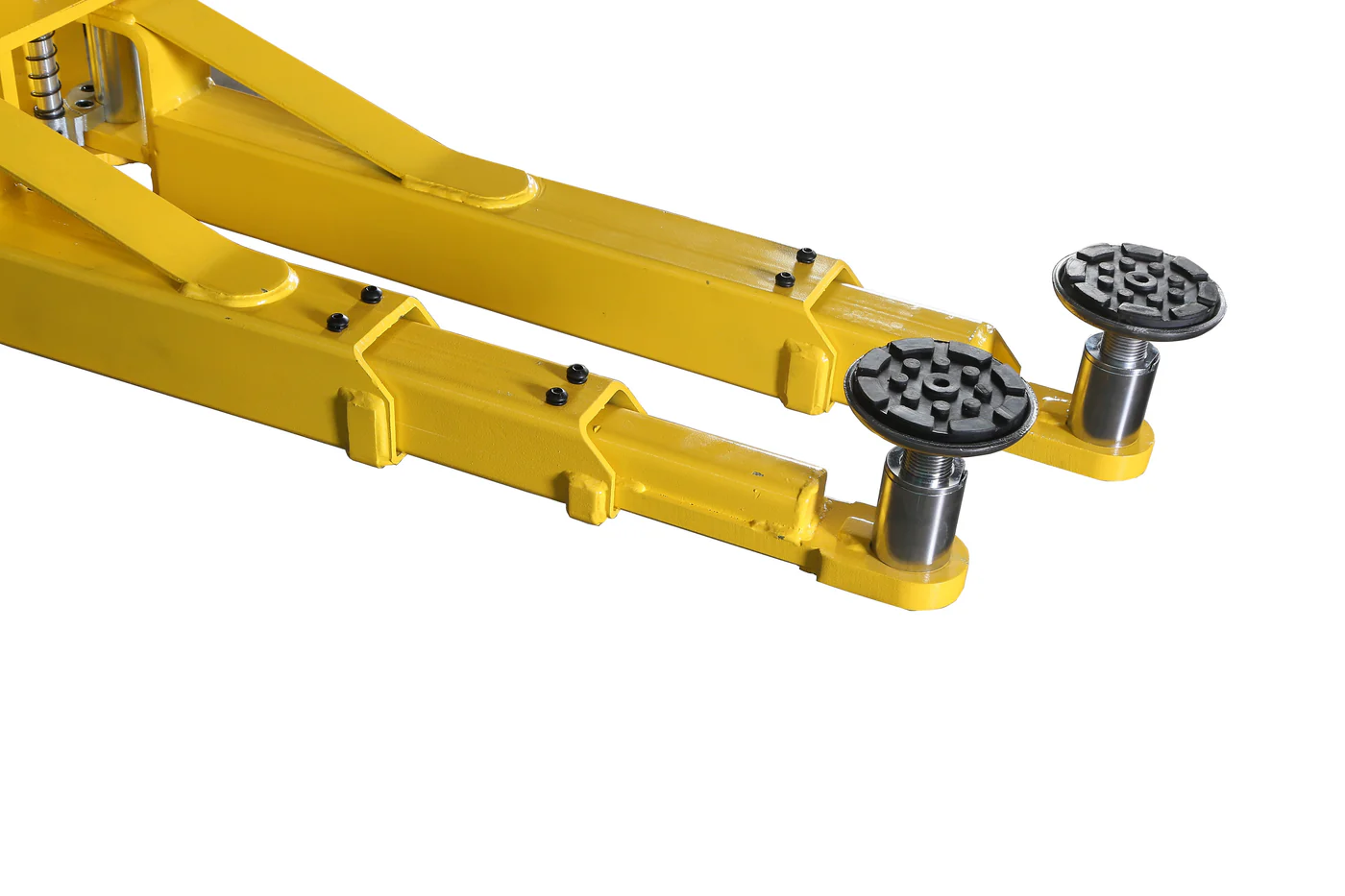

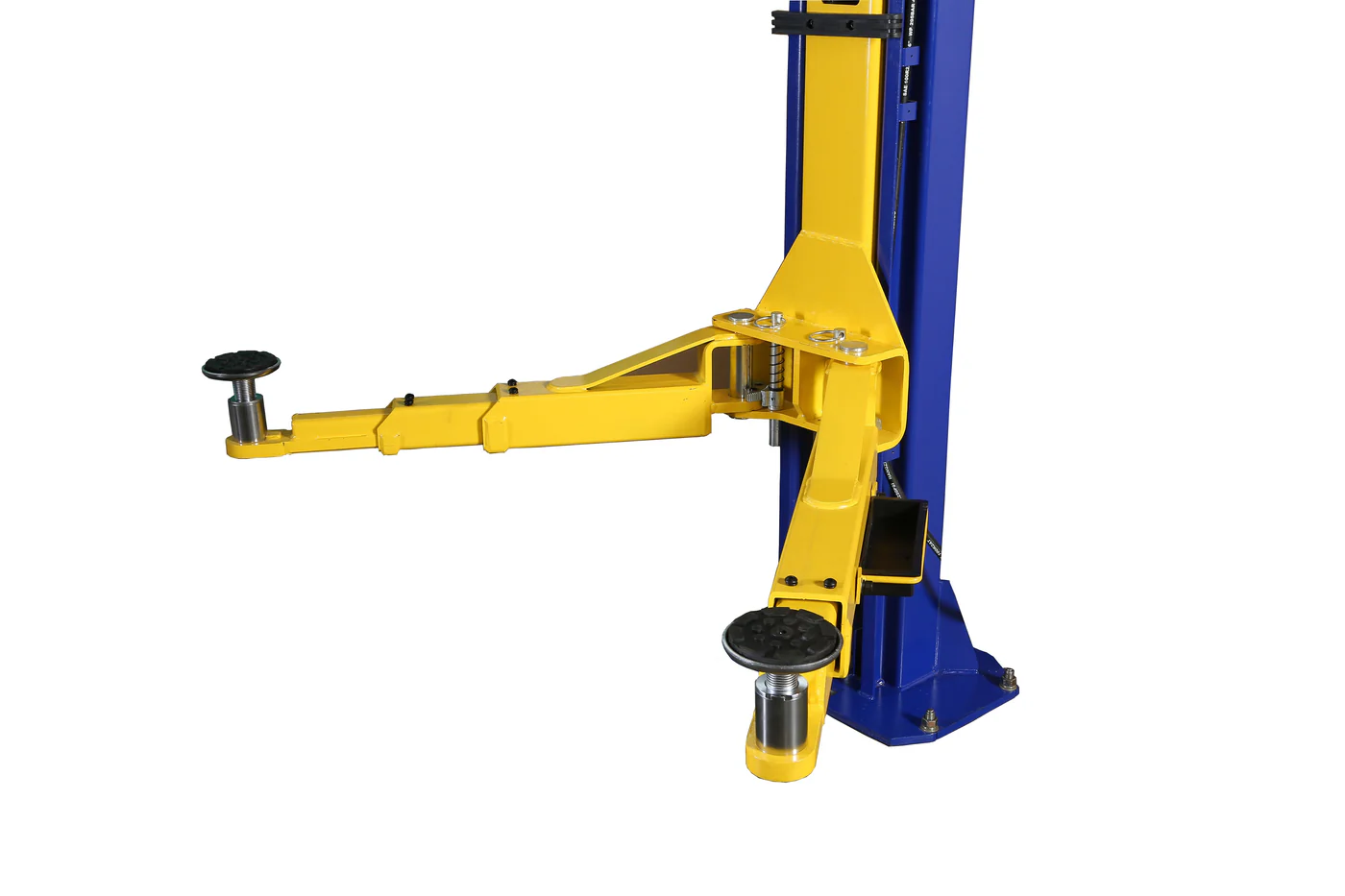

Combo Arm Assembly: Features straight 3-stage front arms and 2-stage rear arms, allowing you to service everything from compact cars to long-wheelbase trucks.

CE Certified Safety: Third-party tested to handle 115% Dynamic and 150% Static load capacities, ensuring maximum operator security.

Superior Materials: The carriages are built from Q355 Steel (ASTM A572), which is significantly stronger than the standard Q235 steel used in economy lifts.

Double "S" Column Design: Stiffened column geometry combined with a 5/8" thick base plate ensures rock-solid stability under maximum load.

High-Performance Hydraulics: Powered by a 3HP motor with dual hydraulic chain-drive cylinders and double-seal rings for leak-free, long-term operation.

Clear Floor Convenience: An overhead shut-off bar and up-limit switch protect your vehicle, while the clear floor design keeps your workspace unobstructed.

TECHNICAL SPECIFICATIONS

Model: HW-10KOH-A

Lifting Capacity: 10,000 lbs

Max Lift Height (with adapters): 81" (6' 9")

Overall Height: 143 3/16" (Approx. 11.9 ft)

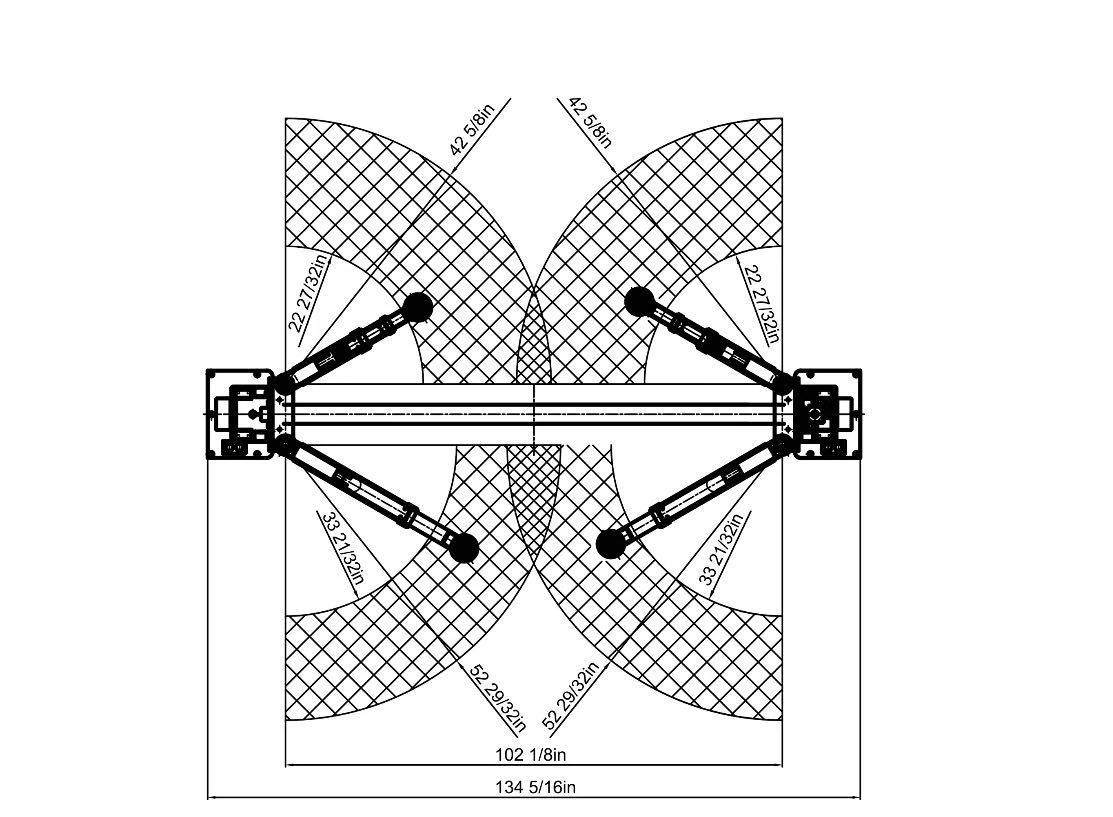

Drive-Through Width: 100"

Motor: 220V Single Phase / 3HP / 10A

Steel Thickness: 13/64" (Columns) | 5/8" (Base Plate)

Shipping Weight: 1,470 lbs

COMPLETE ACCESSORY PACKAGE

Every HW-10KOH-A unit arrives fully equipped with:

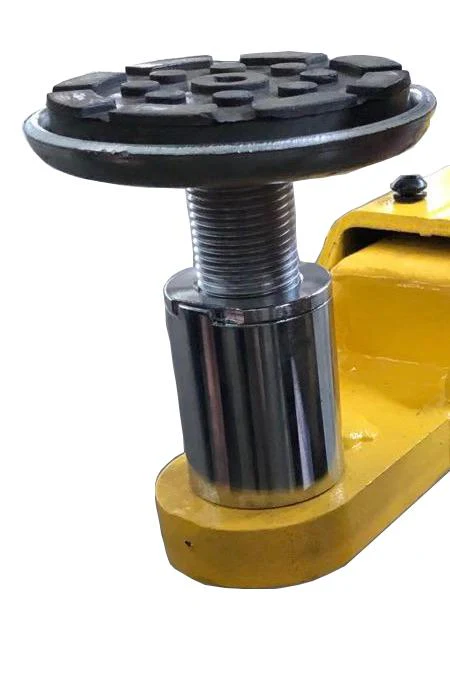

4x Adjustable Screw Pads

4x 4" Tall Truck Adapters (Height Extensions)

2x Tool Trays & 2x Toe Guards

10x Anchor Bolts & Shims for installation

INSTALLATION & SITE REQUIREMENTS

Concrete: Requires 6" thickness at 3,500 PSI (reinforced) for full capacity. Can be installed on 4" concrete for vehicles 9,000 lbs and below.

Electrical: Recommended 30 Amp breaker for the 220V system.

Maintenance: Features self-lubricating nylon sliders and oversized 5" pulleys to reduce cable fatigue and simplify upkeep.

Why Choose the APlusLift HW-10KOH-A?

It is the ultimate "Value King." By using higher-grade ASTM steel and offering a 3-year warranty, APlusLift provides a level of security usually reserved for lifts twice the price. It’s a rugged, robot-welded workhorse designed for the shop owner who wants commercial durability without the commercial price tag
